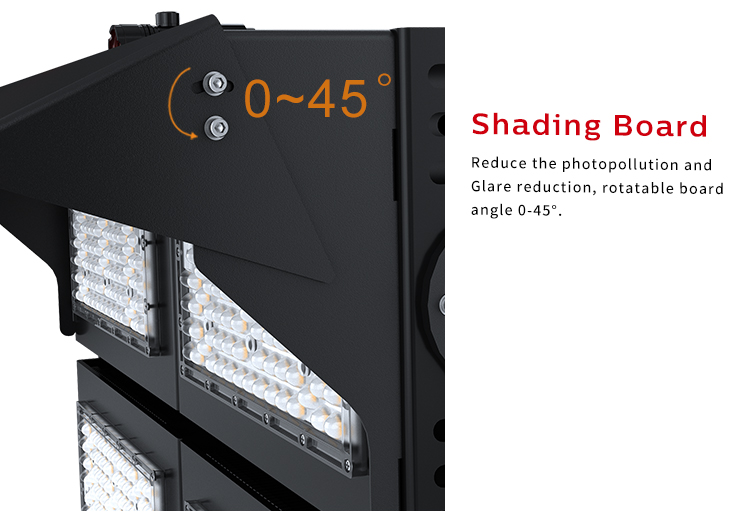

Various beam angle indoor stadium lighting football field lights high mast football field stadium lighting with Shading Board
- Place of Origin:China
- Brand Name:LEPOWER
- Model Number:LY-V18
- Application:Sports Stadiums
- Color Temperature(CCT):4000K/5000K/6000K

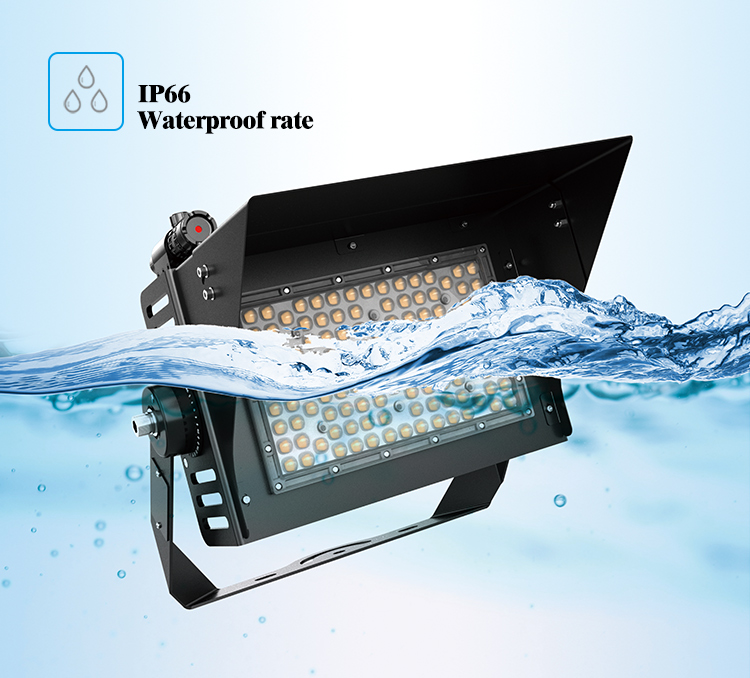

- IP Rating:IP66
- Lamp Body Material:Aluminum Alloy

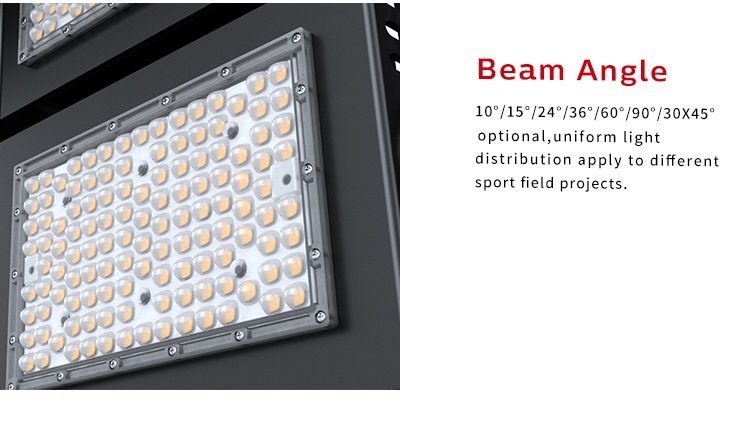

- Beam Angle(°):10°/15°/24°/36°/60°/90°/30X45°/40X90°
- CRI (Ra>):70
- Input Voltage(V):AC 85-265V
- Lamp Luminous Efficiency(lm/w):120-160
- Lamp Luminous Flux(lm):160000
- Warranty(Year):5-Year
- Working Lifetime(Hour):50000
- Working Temperature(℃):-40~50
- Color Rendering Index(Ra):70/80/90
- Certification:CEROHSEMCLVD
- Light Source:LED
- Support Dimmer:Yes

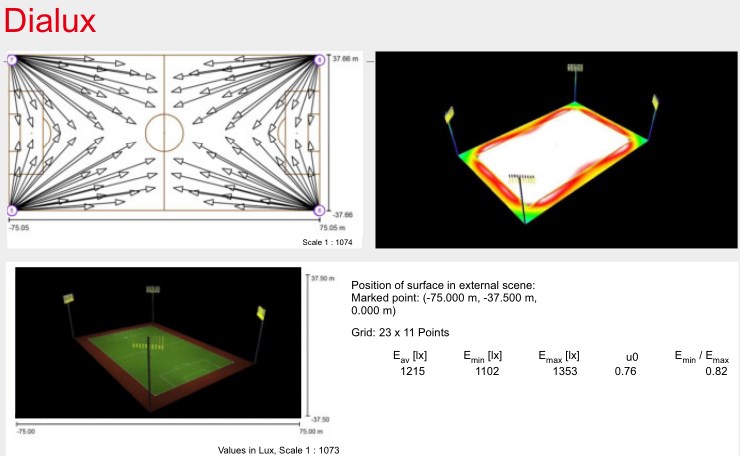

- Lighting solutions service:DIALux evo layout
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:25
- Item Type:Stadium Lights
- LED Driver:Meanwell/MOSO
- LED Light Source:Bridgelux/San'an
- Housing:ADC12+AL6035

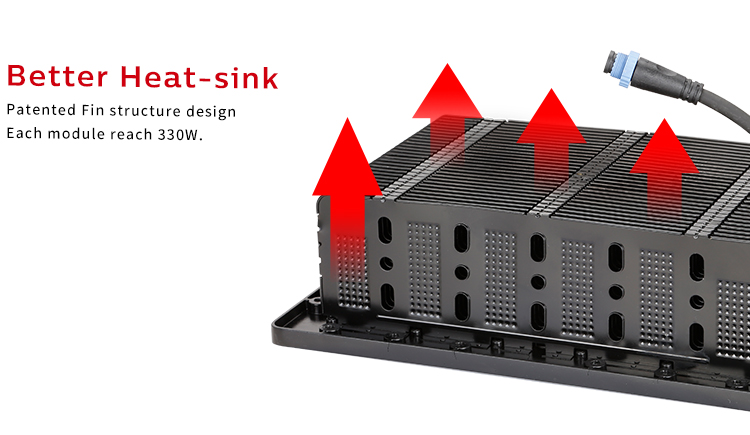

V18 LED stadium lamp is patented Fin heat sink design product,with high efficiency LED,various of beam angle for different lighting application.

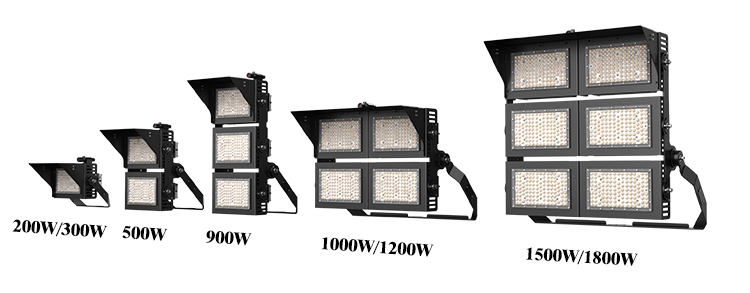

Range from 200W to 1800W,used to televise for professional CCTV high uniformity.

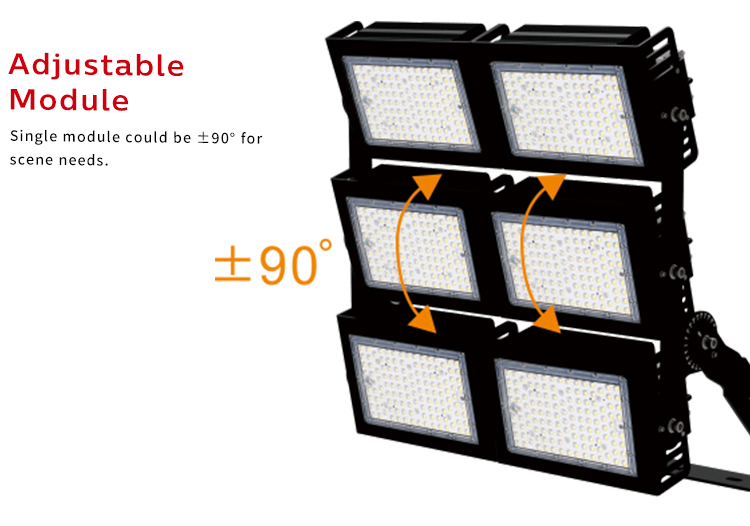

Professional Modular Design LED Sport 500 watt led flood light Football Stadium Light 500W led floodlight
Model NO. | LY-V18-500-2 | LY-V18-900-3 | LY-V18-1200-4 | LY-V18-1500-6 | LY-V18-1800-6 |
Wattage | 500W | 900W | 1200W | 1500W | 1800W |
Beam angle | 10°/15° (120lm/w) 24°/36°/60°/90°/30X45°/90X40°(160lm/w) | ||||
CCT | 4000K / 5000K / 6000K / 6500K | ||||
Lamp size(mm) | 409x500x163 | 409x748x163 | 745x557x163 | 745x807x163 | 745x807x163 |
N.W. | 13.5KG | 19.5KG | 25KG | 35KG | 35KG |

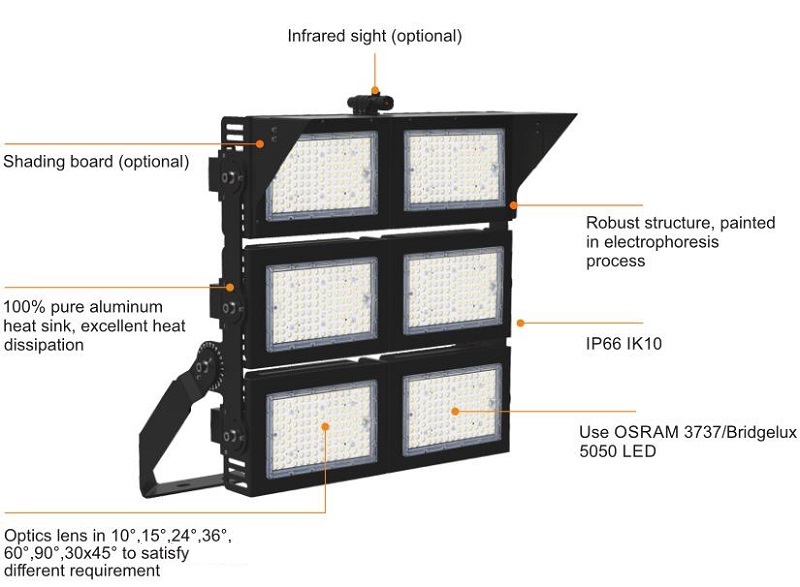

Key features of LED stadium light

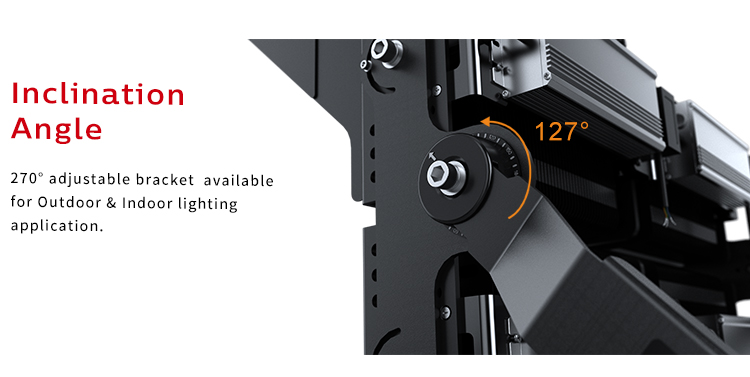

6.-180° ~ 180° adjustable bracket.
Lepower has very strict Quality Control System, from checking and evaluation of incoming materials
to the delivery of products, each item will be checked and tested for several times.

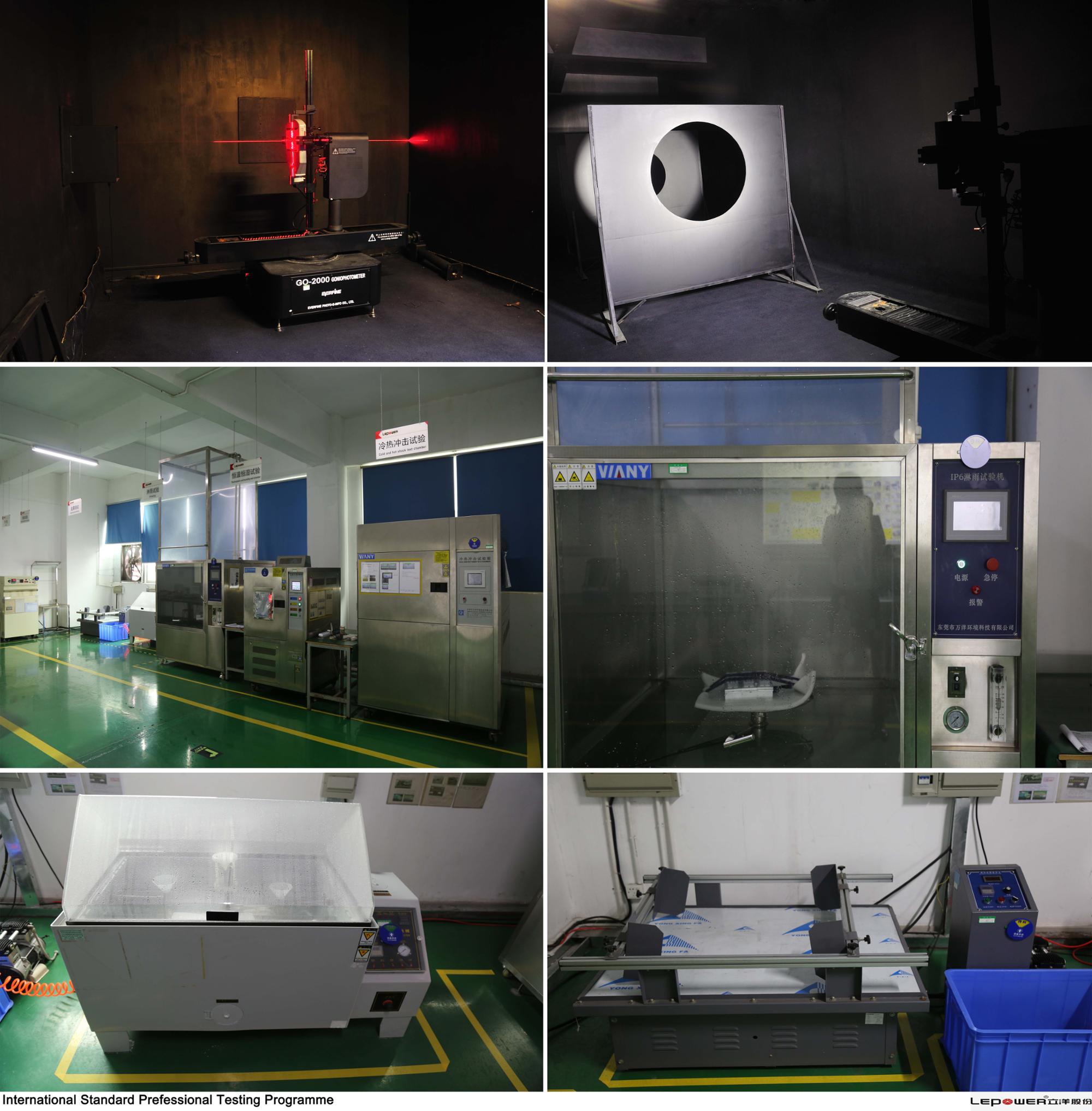

Testing Equipments
Picture No. 1-2: Dark Room for testing IES files and other Photometric datasFor every piece of Lepower LED Light,
they will be tested in many procedures.
Picture No. 3-4: Extreme temperature testing and IP Rating to make sure the lamps work stably and standardly
under extreme temperature and weather environment.
Picture No. 5: Anti-Corrosion Testing, to make sure the lights are working well even under corrosive environment.
Picture No. 6: Drop Testing, to make sure the lamps remain good even dropped from high places
Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?

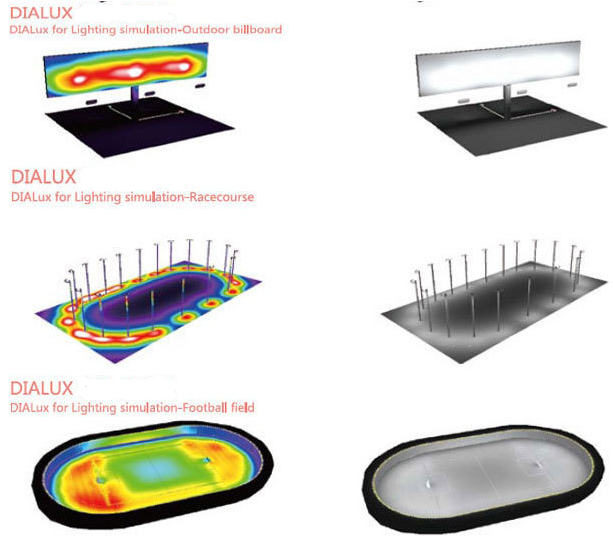

Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.

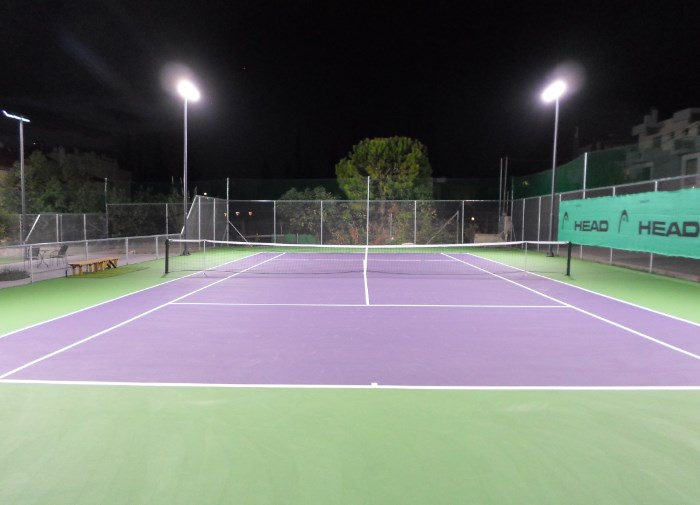

Q5.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination
