Model No: LY-HB06

180lm/w high lumen design outdoor flood lighting 100w 200watt 300watt 400 watt 500watt led flood light for tennis court

minimum order :
1 piece
Country of Origin :
shenzhen
Quantity :
$55.00 - $240.00 / piece
Contact Now
  • Place of Origin:Guangdong, China
  • Brand Name:Lepower
  • Model Number:LY-HB06
  • Application:Sports Stadiums
  • Color Temperature(CCT):5000K (Daylight)
  • IP Rating:IP66
  • Lamp Body Material:Aluminum
  • Beam Angle(°):25/45/60/90/145x90/Type V
  • CRI (Ra>):70
  • Input Voltage(V):AC90-305V
  • Lamp Luminous Efficiency(lm/w):180
  • Lamp Luminous Flux(lm):1
  • Warranty(Year):5
  • Working Lifetime(Hour):50000
  • Working Temperature(℃):-40 - 50, -40 - 50
  • Color Rendering Index(Ra):70
  • Certification:CE, CQC, EMC, LVD, RoHS
  • Power Supply:AC
  • Light Source:LED
  • Support Dimmer:Yes

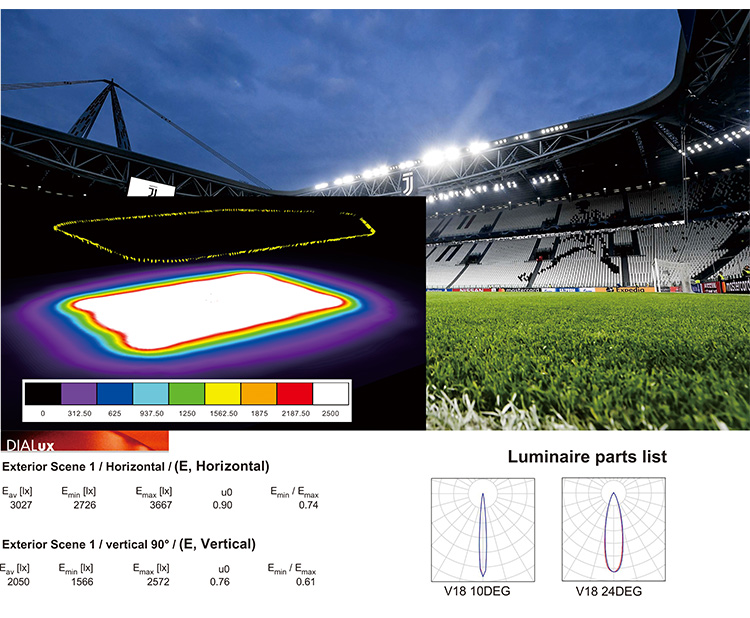

  • Lighting solutions service:DIALux evo layout
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Product Weight(kg):3
  • Control Mode:Switch Control
  • Item Type:LED Flood Lights

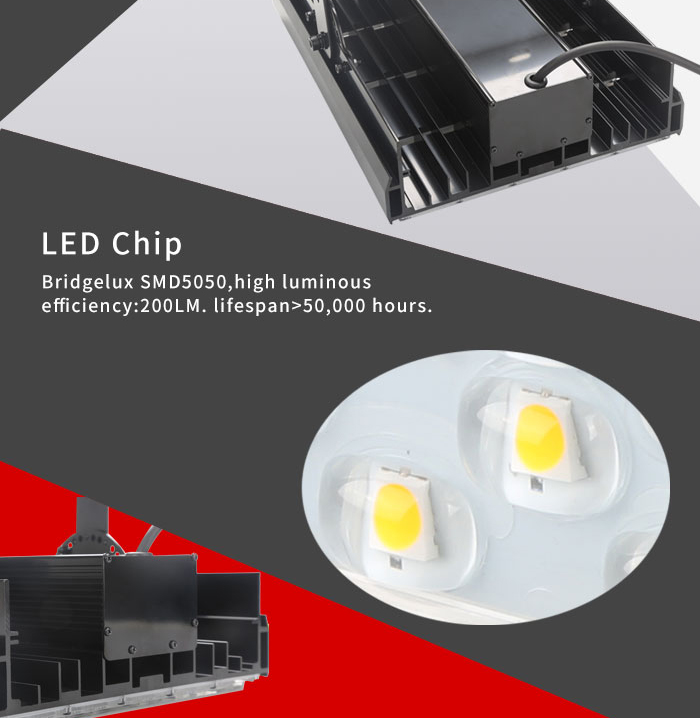

  • Chip brand:Bridgelux 5050
  • LED Driver:Meanwell/MOSO

Shenzhen LEPOWER is a professional manufacturer which own a ISO9001 16000m2 factory.


More than100,000 pcs LEPOWER's LED industrial light installed worldwide every year!!!


We accept the OEM&ODM service. Welcome to contact to us now.

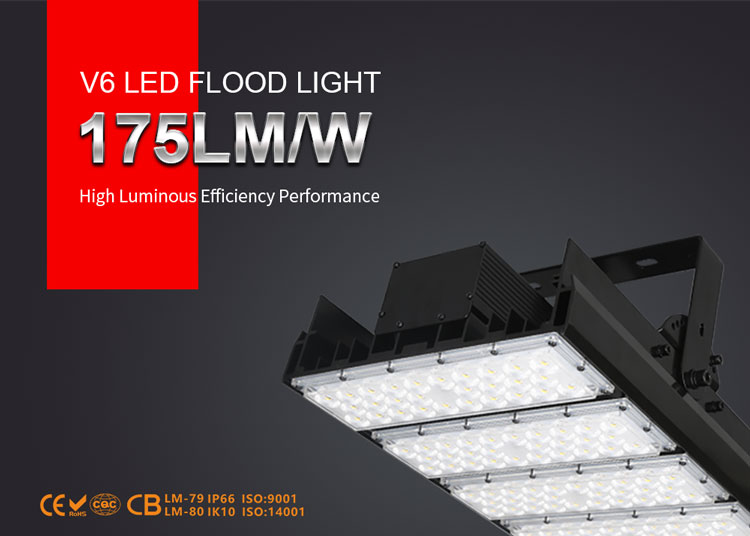

NEW design high efficiency 50w-500w led flood light.






The features of 50w-200w led flood light series.

























































































































Part NumberLY-HB0601LY-LHB0602LY-HB0603LY-HB0604
Wattage50w100W150W200W
Lumen Output7500-8000lm15000-16000lm22500-24000lm30000-32000lm
Luminous Efficacy160-170lm/W165-175m/W165-175m/W165-175m/W
Input Voltage90-305V AC/200-240V AC   50-60Hz

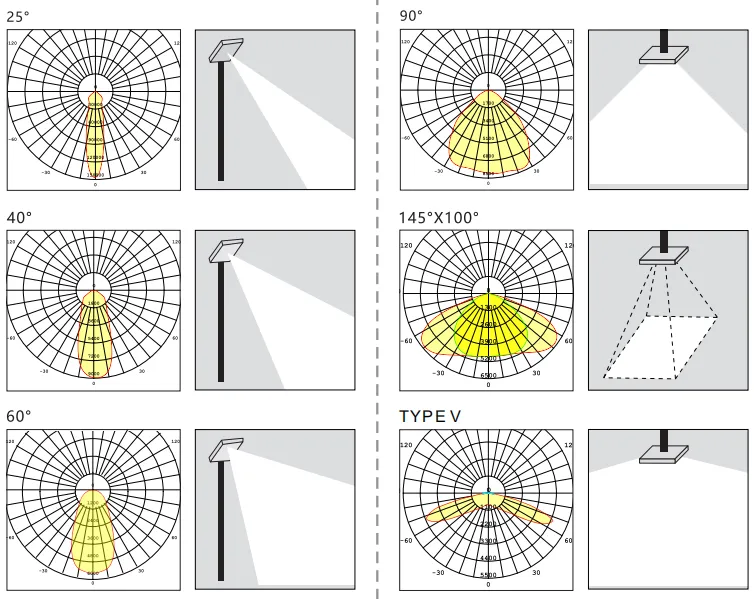

Beam Angle25°/45°/60°/90°/145x90°/Type V
CCT2800~6500K
CRI ≥70 or ≥80
IP & IK RatingIP66&IK10
Surge protectionLine earth 4KV, Line-line 10KV/20KV available
Power factor>0.95
Power efficiency88%92%92%92%
THD<15% or <20%
Working temperature-40℃~50℃  20%~90% H.R
Storage temperature-40℃~85℃ 10%~90% H.R
Housing materialAL6063-T5
Housing colorBlack
InsulationClass 2

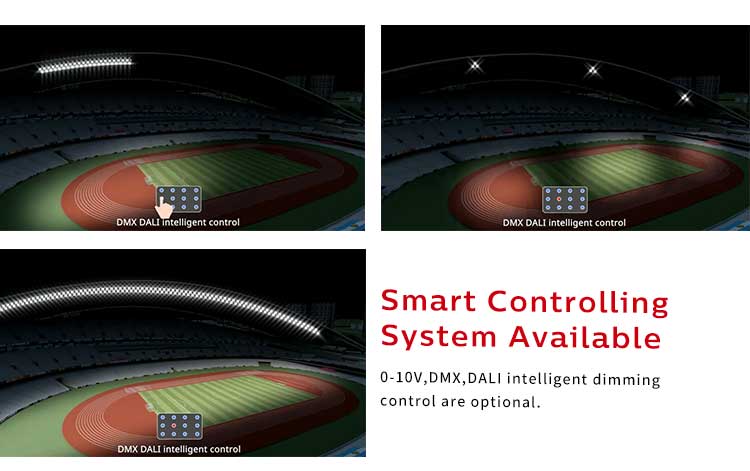

OptionsPWM /DALI/1-10V/Timming
Lifespan>50,000Hrs
Lamp size260*105*195mm260*168*195mm260*258*195mm348*260*195mm
Packing

4pcs/ctn


450*280*215mm



3pcs/ctn


600*310*255mm



2pcs/ctn


585*310*255mm



1pcs/ctn


400*310*255mm


N.W.2.5kg3.0kg4.0kg5.0kg




The features of 250w-500w led flood light series.





















































































































WattageLY-HB0605LY-HB0606LY-HB0608LY-HB0610
Lumen Output250W300W400W500W
Luminous Efficacy37500-40000lm45000-48000lm60000-64000lm75000-78000lm
Input Voltage165-175m/W165-175m/W165-175m/W165-175m/W
Beam Angle25°/45°/60°/90°/145x90°/Type V
CCT2800~6500K
CRI ≥70 or ≥80
IP & IK RatingIP66&IK10
Surge protectionLine earth 4KV, Line-line 10KV/20KV available
Power factor>0.95
Power efficiency92%92%92%92%
THD<15% or <20%
Working temperature-40℃~50℃  20%~90% RH
Storage temperature-40℃~85℃ 10%~90% RH
Housing materialAL6063-T5
Housing colorBlack
InsulationClass 2
OptionsPWM /DALI/1-10V/Timming
Lifespan>50,000Hrs
Lamp size438*260*195mm520*258*195mm520*348*195mm520*438*195mm
Packing

1pcs/ctn


490*310*255mm



1pcs/ctn


570*310*255mm



1pcs/ctn


570*400*260mm



1pcs/ctn


570*490*255mm


N.W.6.0kg9.0kg11kg13kg

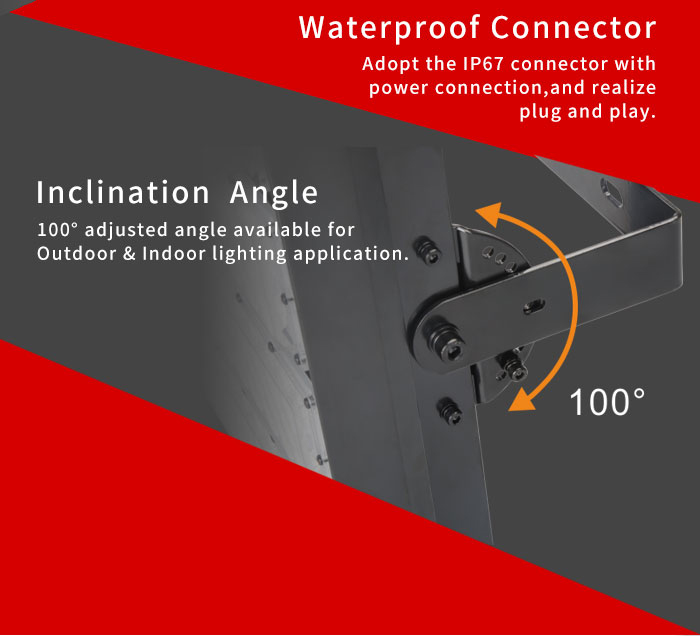

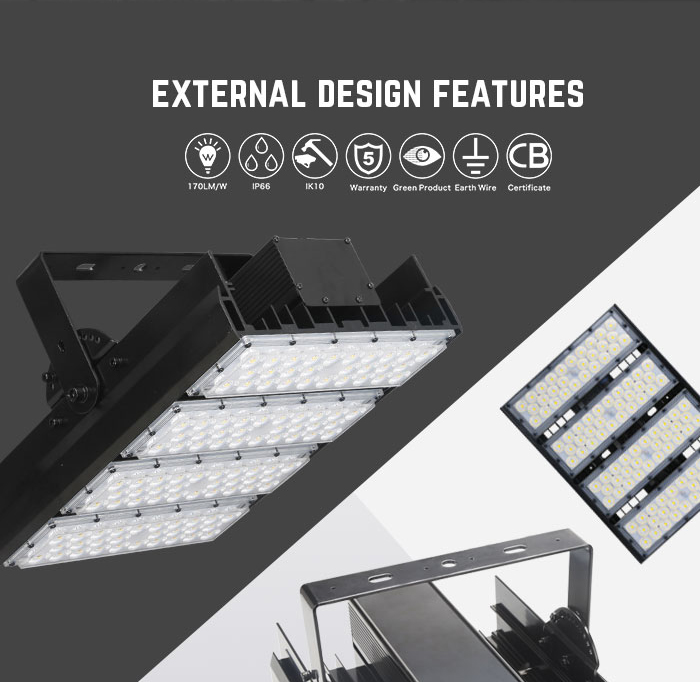

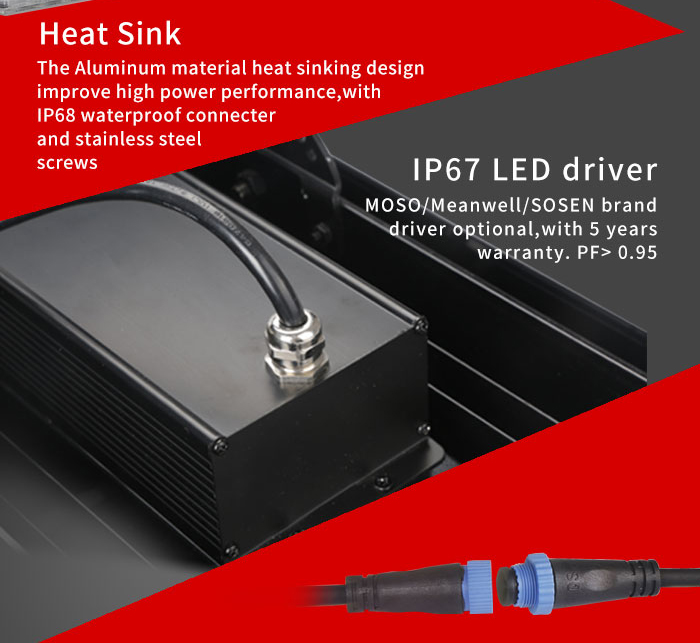

The details pictures of 50W-500w led flood light.

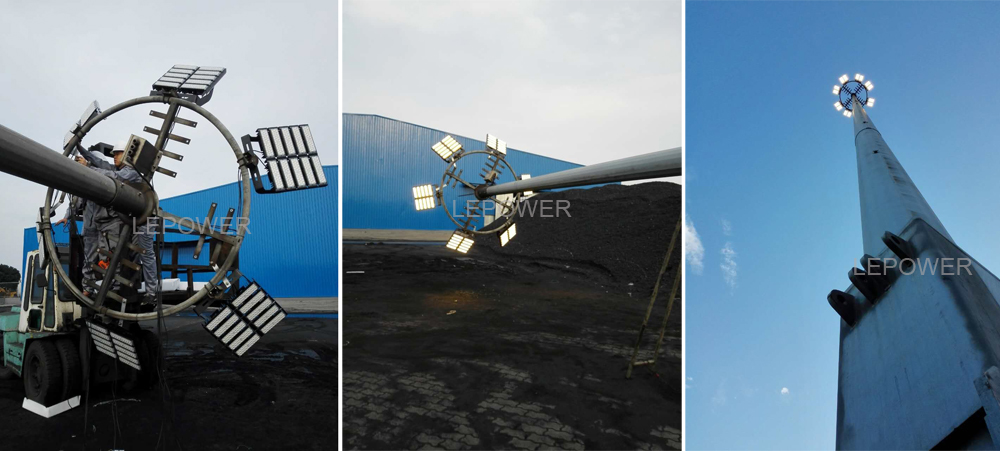

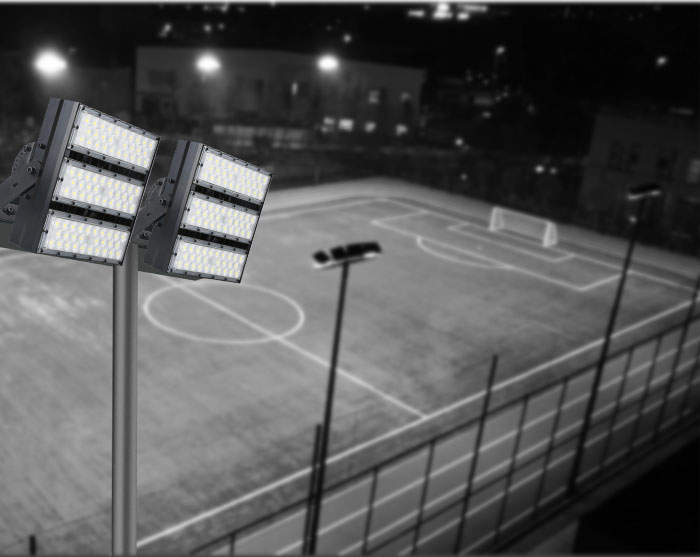

The applicationof 500w led flood light.

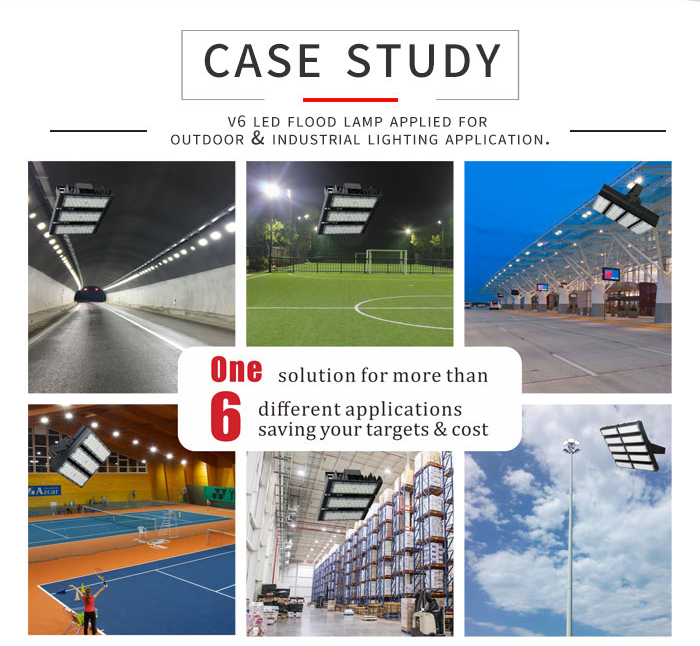

Suitable for stadium,tennis court,soccer field,basketball field,playground,air port,city plaza,sea port etc.wide range lighting.

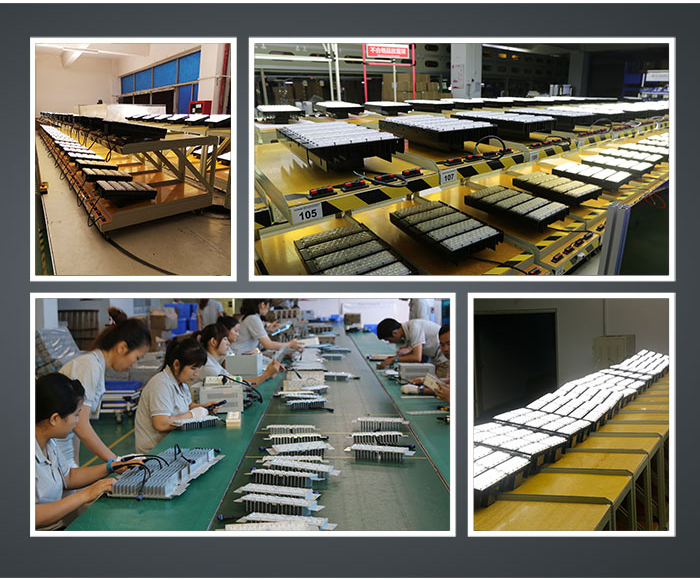

The pictures of our factory's building,office,certificate and production line.














Trading Conditions


1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.


2. Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.


3. Samples time: 5 days.


4. Shipping terms: FOB Shenzhen.


5. Discounts will be determined by quantity.


6. Welcome distributors to cooperate together.





Quality Control


1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.


2. We will be tracing the different phase of production from the beginning.


3. Every LED lights quality checked & cleaned before packing.


4. Before delivery clients could send one QC or point the third party to check the quality.


5. We will try our best to help clients when problem occurred.





Warranty terms


1. 3/5 years warranty.


2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents


3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.


4.  ULCB/SAA/CE/RoHS/TUV





FAQ:


Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.





Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,


electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.





Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.





Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide  you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.



Q4.I have a stadium/sport field ,what's your suggestion?
A: please give me the below information:
1. the size of the sport area.
2. the installation height for light.
3. the requirement of the illumination.






Contact us and get full quotation list.


We will take you a new better professional lighting.
