Model No: LY-BH06B

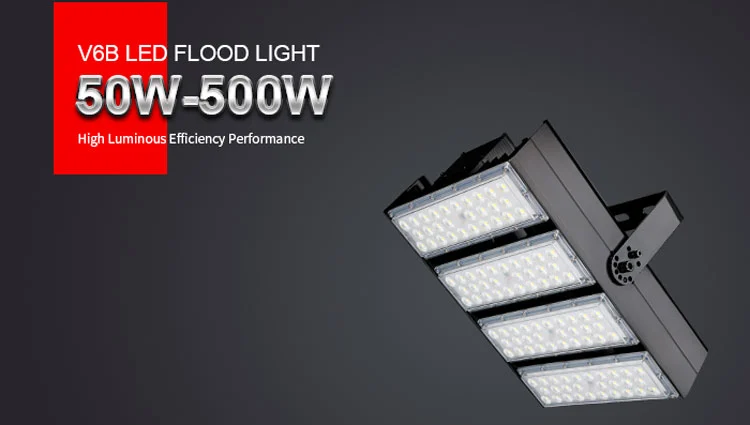

180lm/w High Quality 300W 400W 500W Outdoor Aluminum Ip66 Flood Light
minimum order :
1 piece
Quantity :
$37.00 - $216.00 / piece
Subscribe to our Newsletter
- Place of Origin:Guangdong, China
- Model Number:LY-BH06B

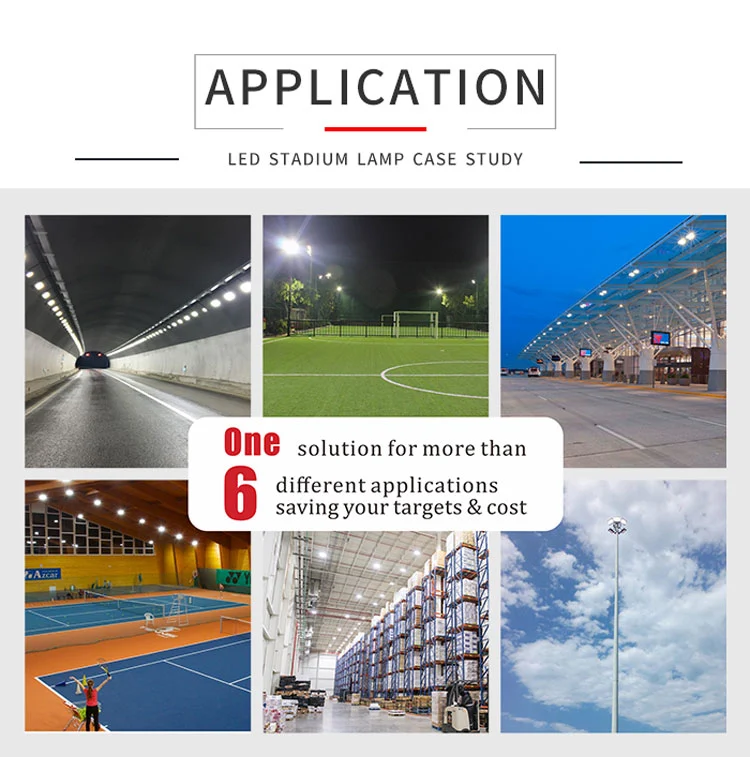

- Application:Sports Stadiums
- Color Temperature(CCT):6000K (Daylight Alert)

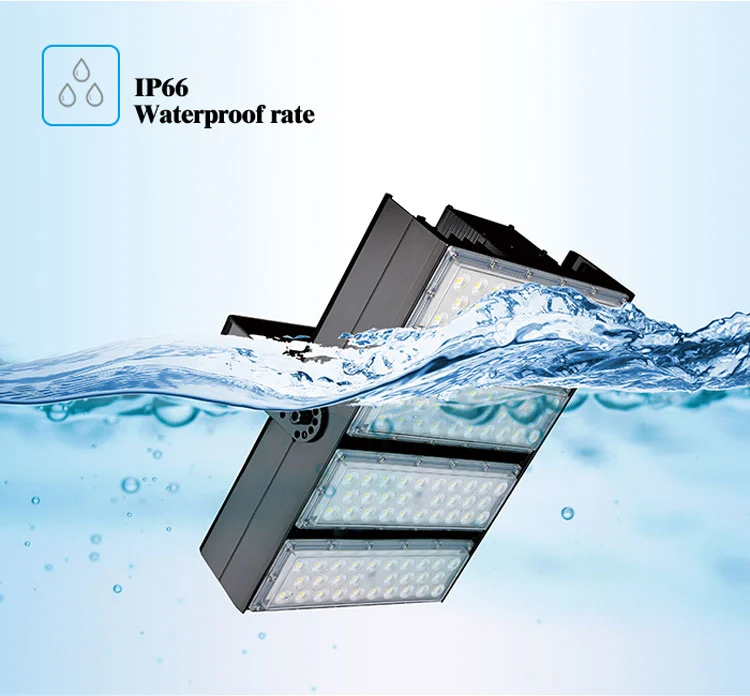

- IP Rating:IP66
- Lamp Body Material:Aluminum
- Beam Angle(°):25/40/60/90/145*100/150°
- CRI (Ra>):70
- Input Voltage(V):90-305V
- Lamp Luminous Efficiency(lm/w):160
- Lamp Luminous Flux(lm):31200
- Warranty(Year):5-Year
- Working Lifetime(Hour):50000
- Working Temperature(℃):-40 - 50
- Certification:EMC, RoHS, ETL, CCC, CE, IP66, IK, CB
- Light Source:LED
- Lighting solutions service:Lighting and circuitry design, Project Installation
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:2.5
Product Description

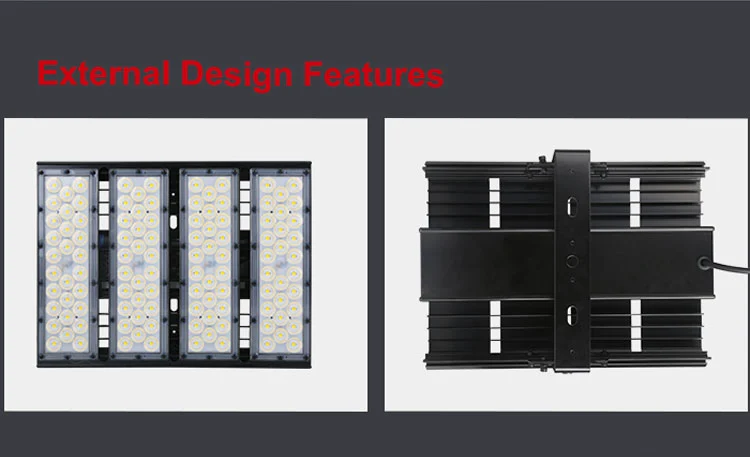

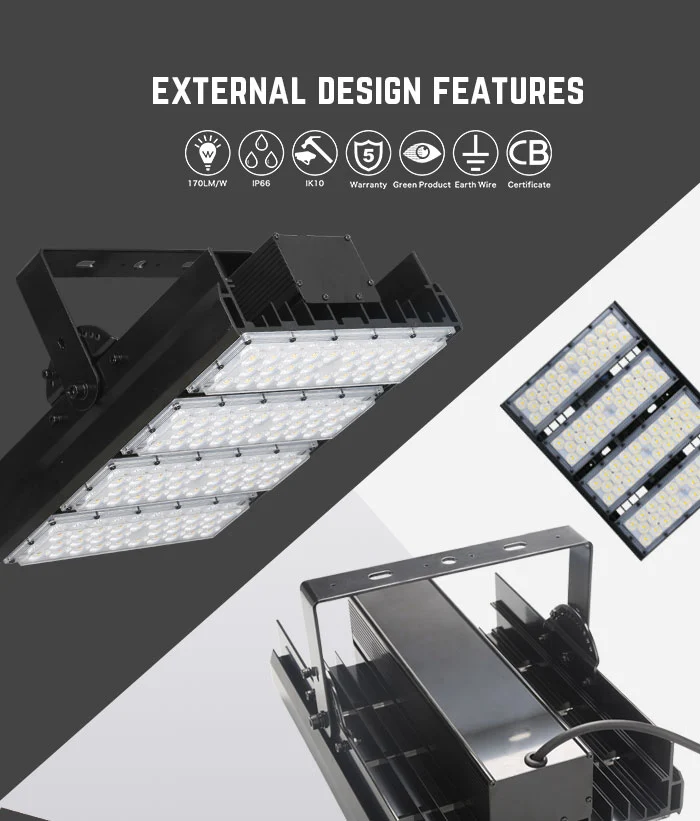

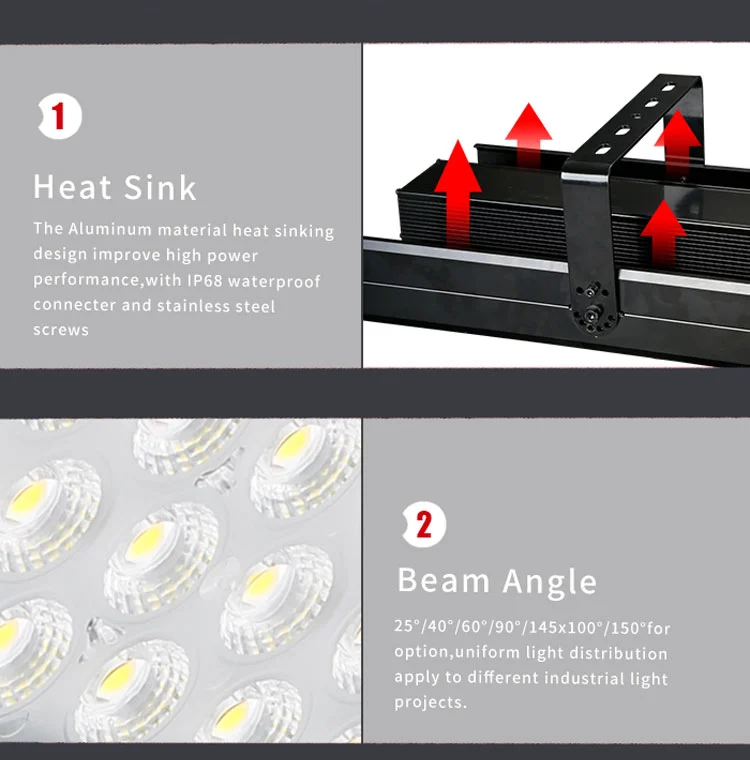

1. High pressure die-cast aluminum alloy housing.
2.The light transmittance up to 98%.Luminous efficacy up to 160lm/w.
2.The light transmittance up to 98%.Luminous efficacy up to 160lm/w.
3. 25°/40°/60°/90°/145°*100/150° for option, apply to different industrial light projects.
4. Multi-chip package 5050 LED source and exclusive Lens increase performance,low light failure and dead lights.

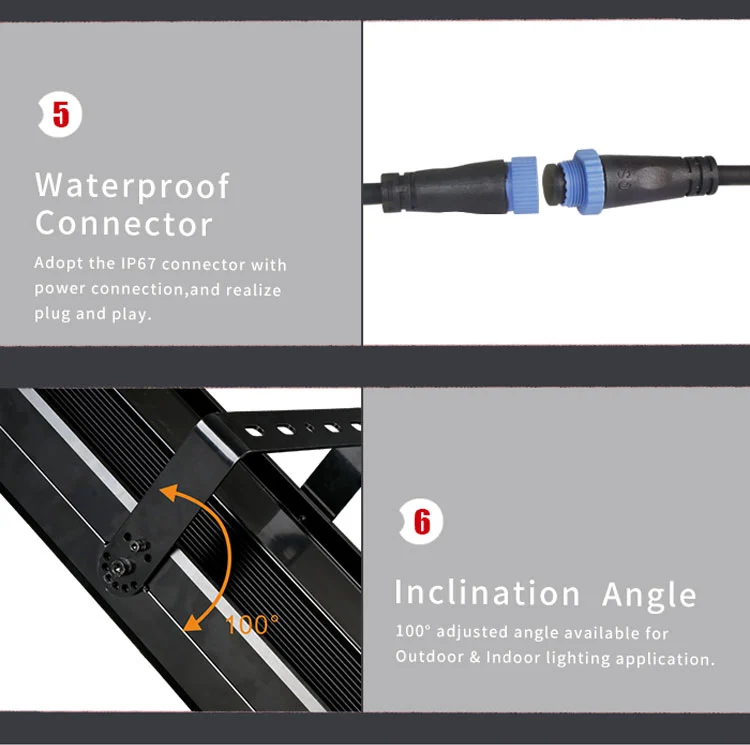

5. Excellent operating temperature -40°C ~ 50°C, -90° ~ 180° adjustable angle available for outdoor & indoor lighting application.
5. Excellent operating temperature -40°C ~ 50°C, -90° ~ 180° adjustable angle available for outdoor & indoor lighting application.
Product Model | LY-HB06B01 | LY-HB06B02 | LY-HB06B03 | LY-HB06B04 | LY-HB06B05 | LY-HB06B06 | |||||
Power | 50W | 100W | 150W | 200W | 250W | 300W | |||||
5050 LEDs Qty | 28 | 56 | 84 | 112 | 140 | 168 | |||||
Luminous Efficiency | 160lm/w | 160-180lm/w | 160-180lm/w | 160-180lm/w | 160-lm/w | 160lm/w | |||||
Luminous Flux | 7800 | 15600 | 23400 | 31200 | 39000 | 46800 | |||||
N.W(KG) | 2.5 | 3.6 | 4.0 | 5.0 | 6.0 | 9.0 | |||||
Size | 260*85*174 | 260*168*174 | 260*258*174 | 260*348*174 | 438*260*174 | 520*258*174 | |||||
Voltage | 90-305V / 249-528V AC, 50/60Hz | ||||||||||
Beam Angle | 25°/40°/60°/90°/145x100°/150° | ||||||||||
CRI | 70(80/90 option) | ||||||||||
CCT | 3000K/4000K/5000K/6000K | ||||||||||
IP/IK Rate | IP66/IK10 | ||||||||||

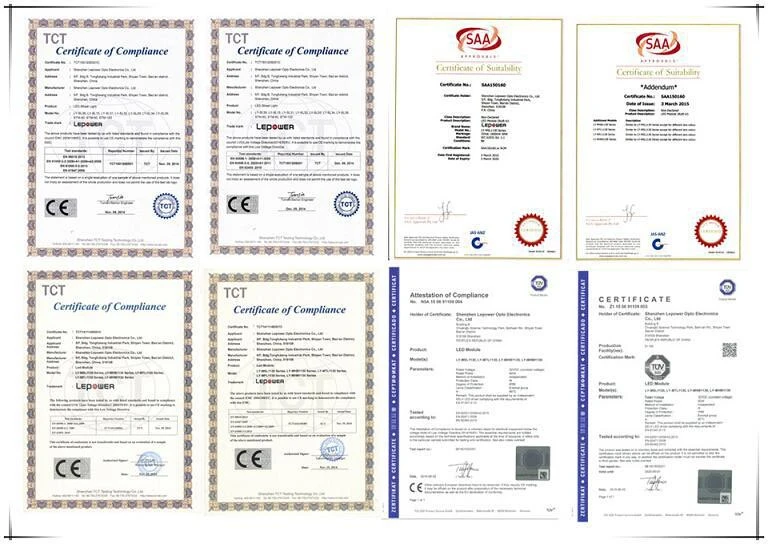

Certificate
Packing&Shipping

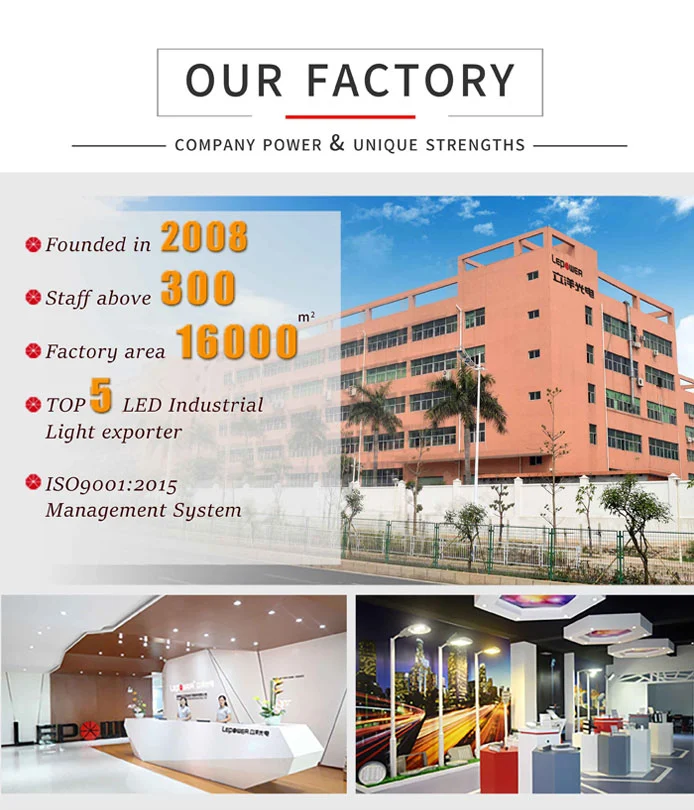

Company Introduction
Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as China national high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.

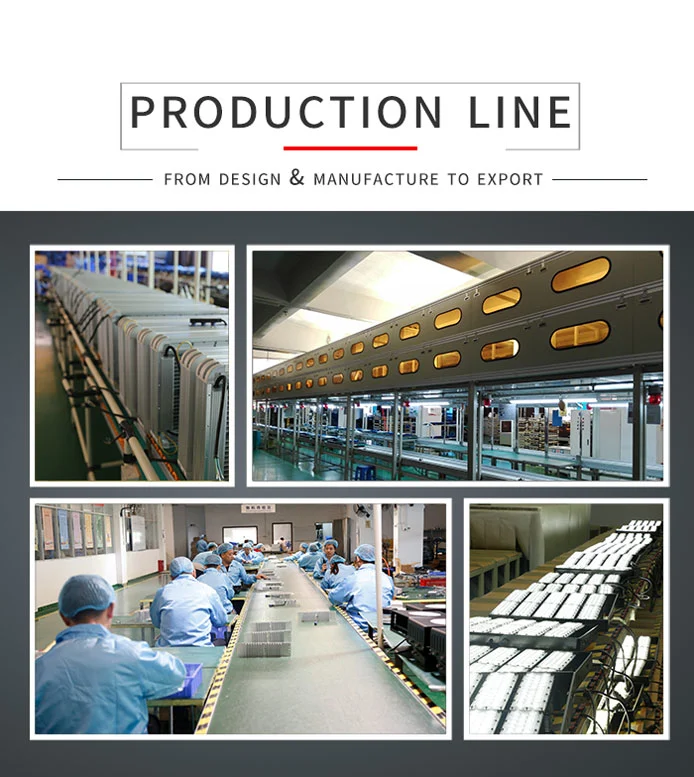

Lepower, with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions. Lepower strictly carry out ISO9001:2008 quality management system, and most Products have passed several tests by authorized Lab, and got ETL, DLC,ENEC,CB, CE,ROHS,LM-80,LM-79,CQC certification etc.
Lepower, with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions. Lepower strictly carry out ISO9001:2008 quality management system, and most Products have passed several tests by authorized Lab, and got ETL, DLC,ENEC,CB, CE,ROHS,LM-80,LM-79,CQC certification etc.
FAQ
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you
the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you
the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination
