Model No: LY-SL02
LED solar street light 40W 50W 60W 80W 100W Dimming Design Luminous Lamp Power BATTERY Cell Rating Flux Quality High
minimum order :
1 piece
Country of Origin :
Shenzhen
Quantity :
$127.00 - $195.00 / piece
Subscribe to our Newsletter
- Model Number:LY-SL02
- Application:ROAD
- Color Temperature(CCT):2800k-6500k
- IP Rating:IP66
- Input Voltage(V):DC 12V
- Lamp Luminous Efficiency(lm/w):170-190lm/w
- Lamp Luminous Flux(lm):185000lm
- Warranty(Year):5-Year
- Color Rendering Index(Ra):>70
- Power Source:LiFeO4
- Type:LED solar street light
- Certification:CCC
- Light Source:LED
- Support Dimmer:Yes
- Lighting solutions service:DIALux evo layout, auto CAD layout
- Lifespan (hours):50000
- Working Time (hours):50000
- Product name:LY-solar street light
SPECIFICATION
2020

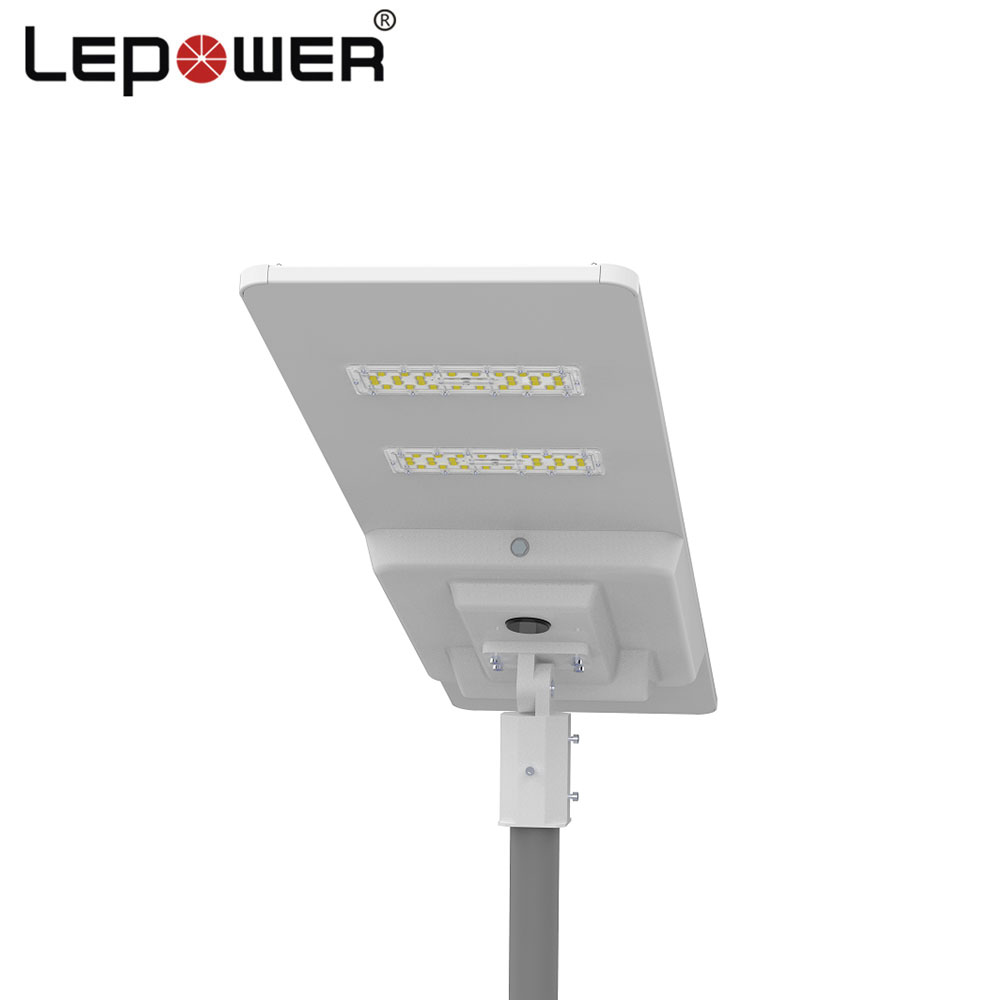

ALL IN ONE SOLAR LED STREET LIGHT
2020
ALL IN ONE SOLAR LED STREET LIGHT
Product Description
1. Flexible selection of high lumen and high luminous flux, customized the best solution of luminaire according to local sunshine.
2. Integreated design, easy installation, each component can be easily replaced and maintained,saving cost.

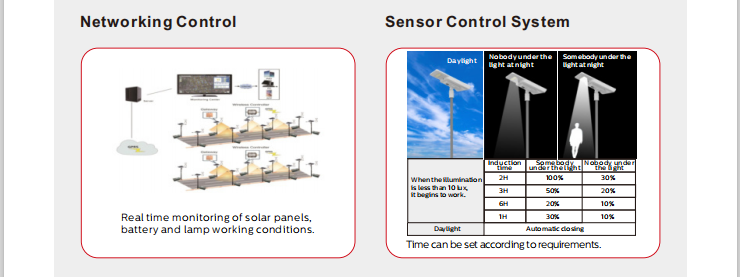

3. The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective lighting time of the lamp.

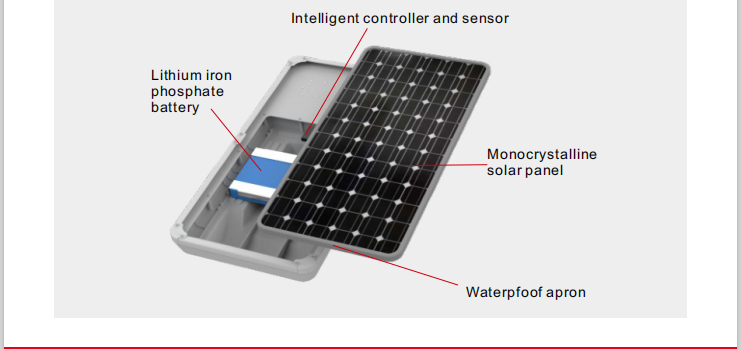

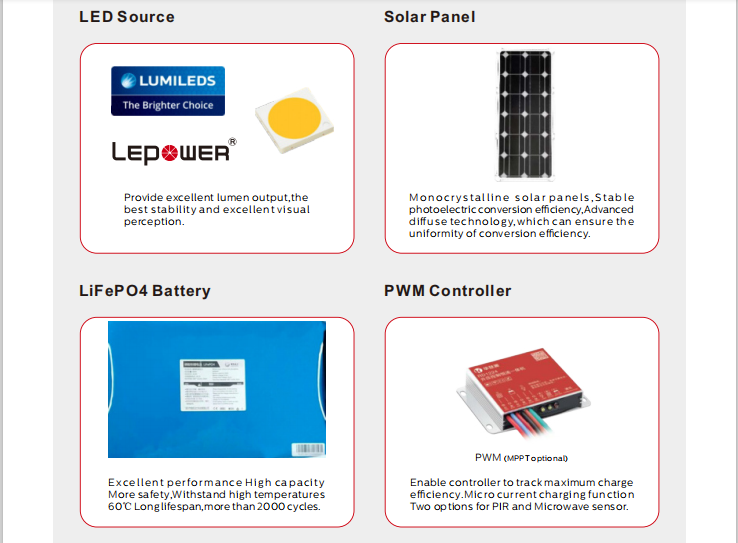

4. Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650 battery cells excellent Lithiumiron phosphate battery.

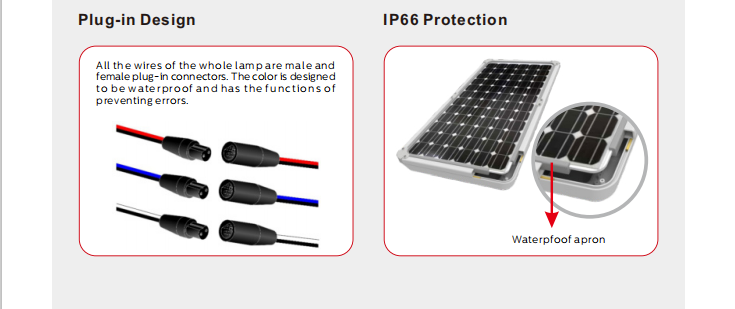

5. Using special plug connector, color design Fool-proofing, with anti-wrong connection function.

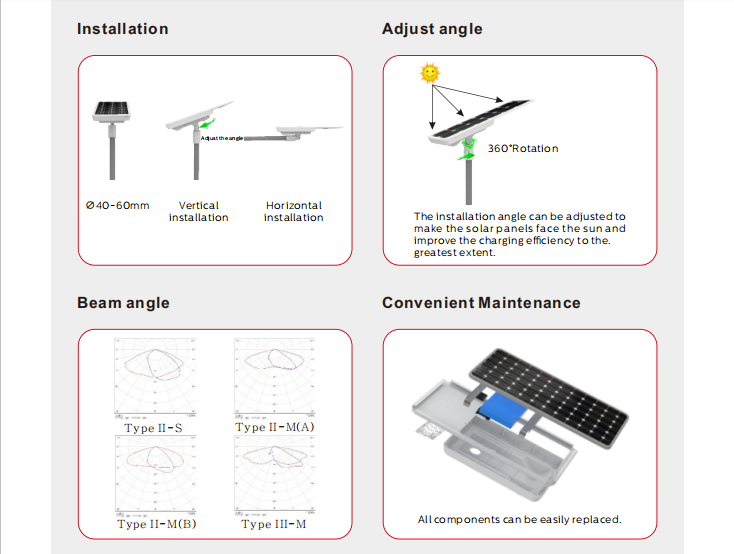

6. Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirments of different latitude regions and different type poles.
7. Professional waterproof design, protection grade IP66.
8. Wind resistance rating 65m/s.
2. Integreated design, easy installation, each component can be easily replaced and maintained,saving cost.
3. The intelligent controller matches the PIR infrared or intelligent microwave sensor to ensure the effective lighting time of the lamp.
4. Adopting high efficiency monocrystalline silicon and conversion rate of 19.8% solar panels, grade A1 32650 battery cells excellent Lithiumiron phosphate battery.
5. Using special plug connector, color design Fool-proofing, with anti-wrong connection function.
6. Adopting adjustable mounted arm, can be adjusted in many angles, suitable for installation requirments of different latitude regions and different type poles.
7. Professional waterproof design, protection grade IP66.
8. Wind resistance rating 65m/s.
Specification
Parameters | LY-SL02-40 | LY-SL02-50 | LY-SL02-60 | LY-SL02-80 | LY-SL02-100 | ||
Model | 40W | 50W | 60W | 80W | 10W | ||
Solar Panel Parameters | Monocrystalline 18V 40W | Monocrystalline 18V50W | Monocrystalline 36V 60W | Monocrystalline 36V 80W | Monocrystalline 36V 100W | ||
Battery Parameters | LiFePO4 12.8V 18AH | LiFePO4 12.8V 24AH | LiFePO4 25.6V 16.5AH | LiFePO4 25.6V 18AH | LiFePO4 25.6V 22AH | ||
System Voltage | 12V | 12V | 24V | 24V | 24V | ||
LED Brand | Lumileds/Lepower | ||||||
Light Distribution | Type II-S,II-M,III-M | ||||||
CCT | 2800K-6500K | ||||||
Working Time | 2-3 Days(Auto Control) | ||||||
Protection Grade | IP66,IK09 | ||||||
Luminous Efficiency | 170-180Lm/w(Lumileds) 180-190Lm/w(Lepower) | 180-190Lm/w(Lepower) | |||||
LEDs Qty | 28pcs | 28pcs | 28pcs | 56pcs | 56pcs | ||
Operating Temperature | -20℃to 60℃ | ||||||
Warranty | 5 Years | ||||||
Material | Aluminium | ||||||
Luminous Flux | 7400lm | 9250lm | 11100lm | 14800lm | 18500lm | ||
As The Market Similar Solar Light Power | 40W | 50W-60W | 60W-70W | 80W | 100W | ||
Streamlined design.Higher efficacy Lumileds/Lepower LE D.P W M/M P P T controller
is optional. Multiple optical designs, better performance. Easy installation and maintenance.
LY-SL02 series Solar LED street light will provide the best lumen output,the best stability
and very long lifetime. Provide over 5 years warranty for whole fixture.
is optional. Multiple optical designs, better performance. Easy installation and maintenance.
LY-SL02 series Solar LED street light will provide the best lumen output,the best stability
and very long lifetime. Provide over 5 years warranty for whole fixture.
