Catenary Design Europe Design Street Light IP66 180-190lm/w 80 Watt 100 Watt Urban LED Street Light
- Place of Origin:Guangdong, China
- Brand Name:LEPOWER
- Model Number:L19
- Application:ROAD
- Color Temperature(CCT):4100K (Neutral White)
- IP Rating:IP65
- Lamp Body Material:Aluminum
- Beam Angle(°):150x70
- Input Voltage(V):AC90-305V
- Lamp Luminous Efficiency(lm/w):160
- Lamp Luminous Flux(lm):16000
- Warranty(Year):5
- Color Rendering Index(Ra):70
- Certification:ce, CQC, EMC, rohs, VDE
- Power Supply:AC
- Light Source:LED
- Support Dimmer:Yes

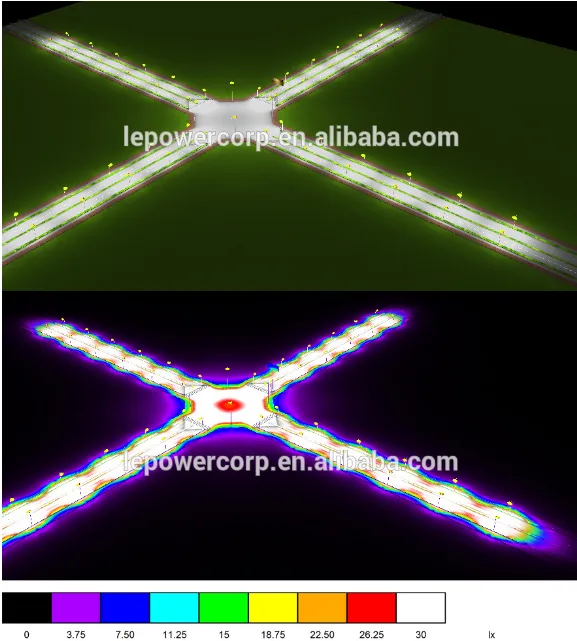

- Lighting solutions service:DIALux evo layout
- Working Hours:50000
- Control Mode:APP Control, Remote Control, Switch Control, Sensor control
- Item Type:Street Lights
- Sensor:Day-light Sensor optional
- Housing color:Black/Grey/White
- IK Rating:IK10
- Company Honor:ISO9001:2008
- LED Driver:Meanwell/MOSO/Inventronics
- Input Surge Protection:6KV L-L,10KV L-E
- Working Time (hours):50000
- Working Lifetime(Hour):50000
ShenzhenLEPOWERLED Corp. Which is a professional manufacturer of 160lm/w LED industrial Lighting;
We own a ISO9001 16000m2 factory. More than 80,000 pcs LEPOWER's LED street light installed worldwide!!!
We accept the OEM&ODM service. Welcome to contact to us now.
160LM/W High efficiency Catenary design LED street light 60w 80w 100w
No. | Name | Features | |
1 | Model | LY-L1902-80W | LY-L1902-100W |
2 | Power | 80W | 100W |
3 | CCT | 4000K/5000K/6000K | |
4 | Beam angle | 150*70°/150*60°/145*90° 25°/40°/60°/90° | |
5 | LEDs | 5050 LED | |
6 | Leds qty. | 56pcs | 56PCS |
7 | CRI | >70 | |
8 | Efficiency | 18-190Lm/W | |
9 | Lumen | 1440lm ±500lm | 18000lm ±500lm |
10 | IP Rate | IP66 | |
11 | Working voltage | 90-305V | |
12 | Working temperature | -40℃~50℃,20%~90% RH | |
13 | Storage temperature | -40℃~85℃10%~90% RH | |
14 | Power efficiency | 90% | |
15 | PF | >0.95 | |
16 | Lifespan | 50000H | |
17 | Driver brand | MOSO (1-10V Dim) | |
18 | Surge protect | Line-line 6KV,Line-earth 10KV | |
19 | Sensor | Day-light sensor,5 Pin NEMA socket Lora sensor | |
20 | Housing material | AL6063-T5 | |
21 | Light size | 412*280*142mm | 412*280*142mm |
22 | Light N.W. | 3.4KG | 4.4KG |

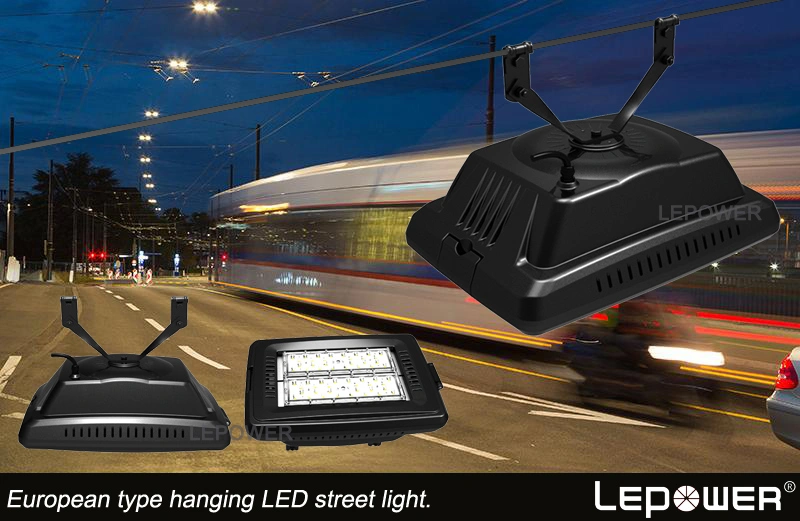

Get your city ready for the future with Catenary Street. (Day light snsor,5 Pin NEMA socket Lora sensor optional)

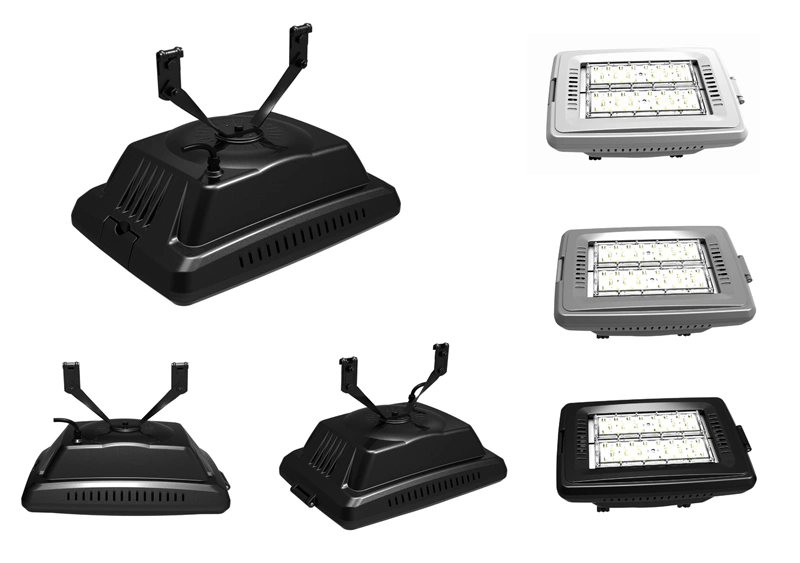

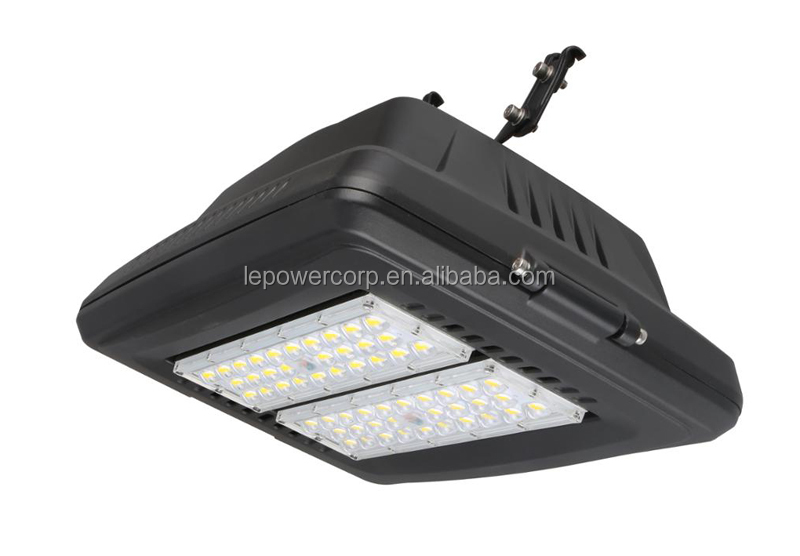

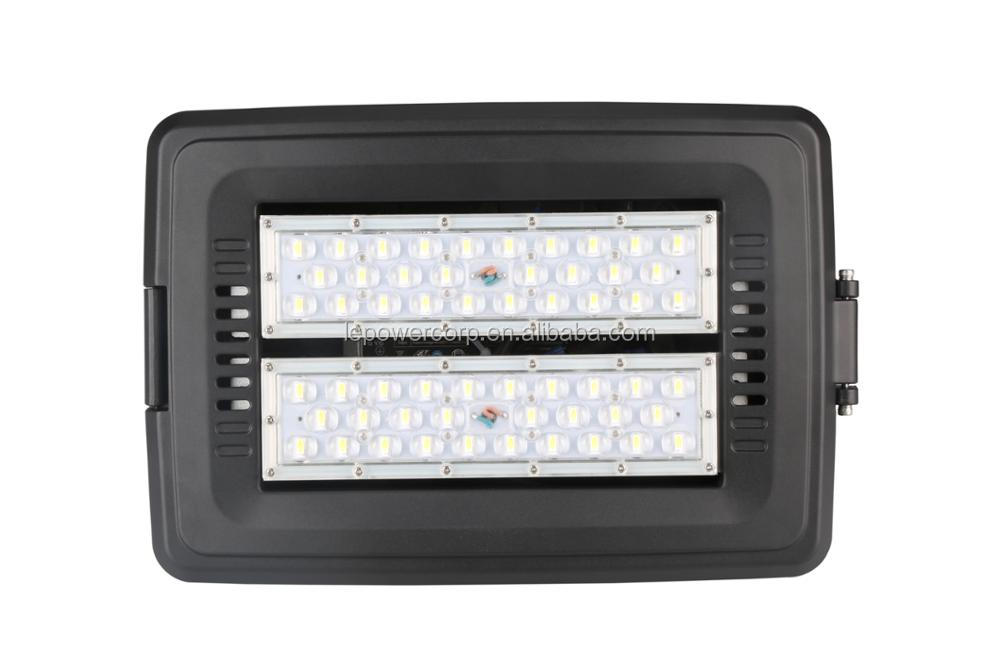

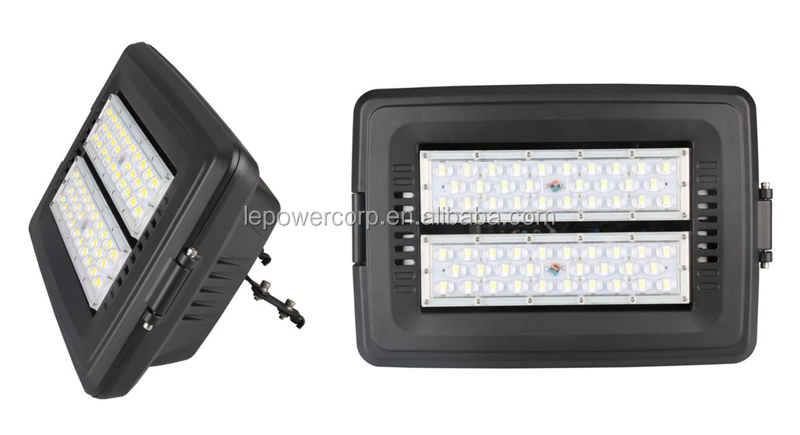

The detail pictures of 180lm/w led street light 60w-100w series.

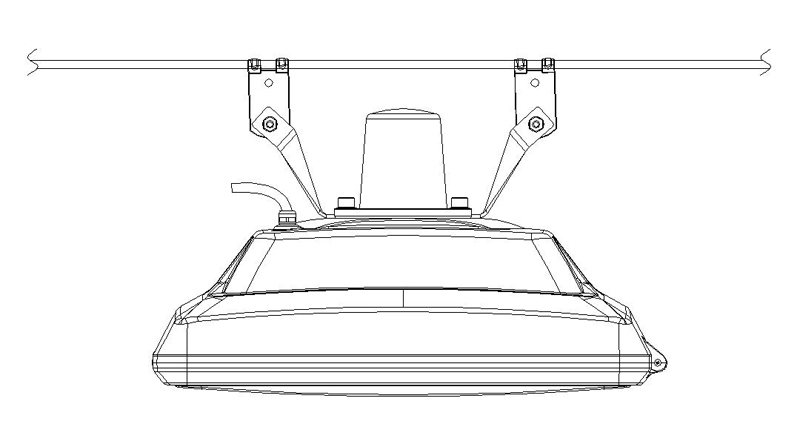

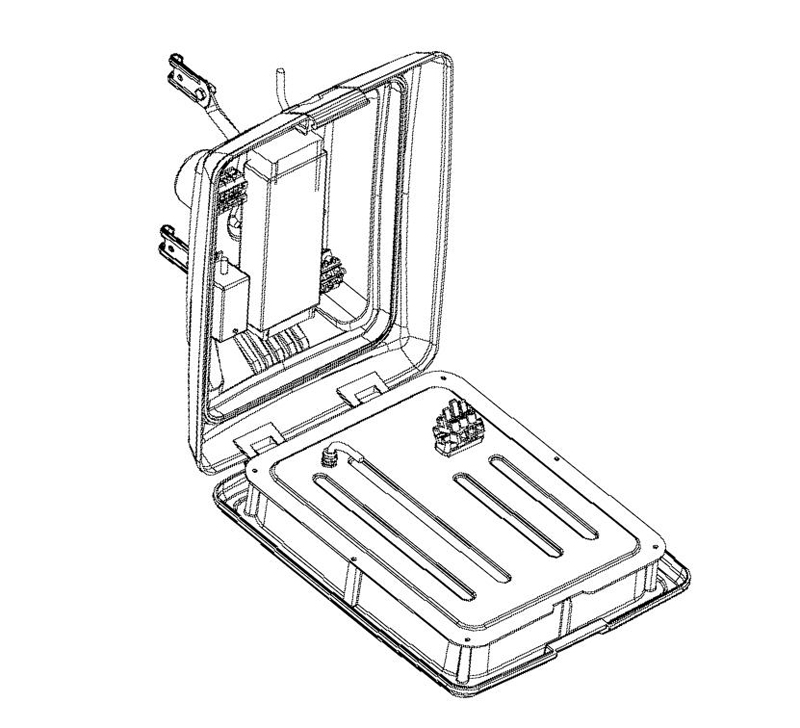

The installation way of hanging street light

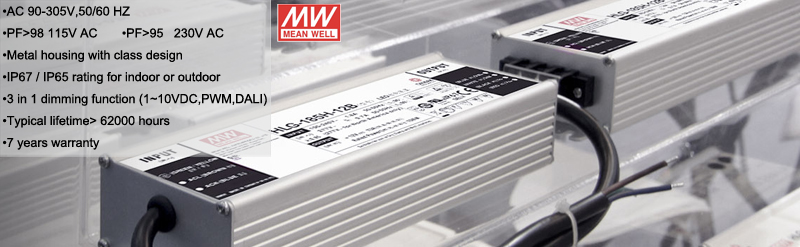

High effenciency led driver with 7 years warranty.

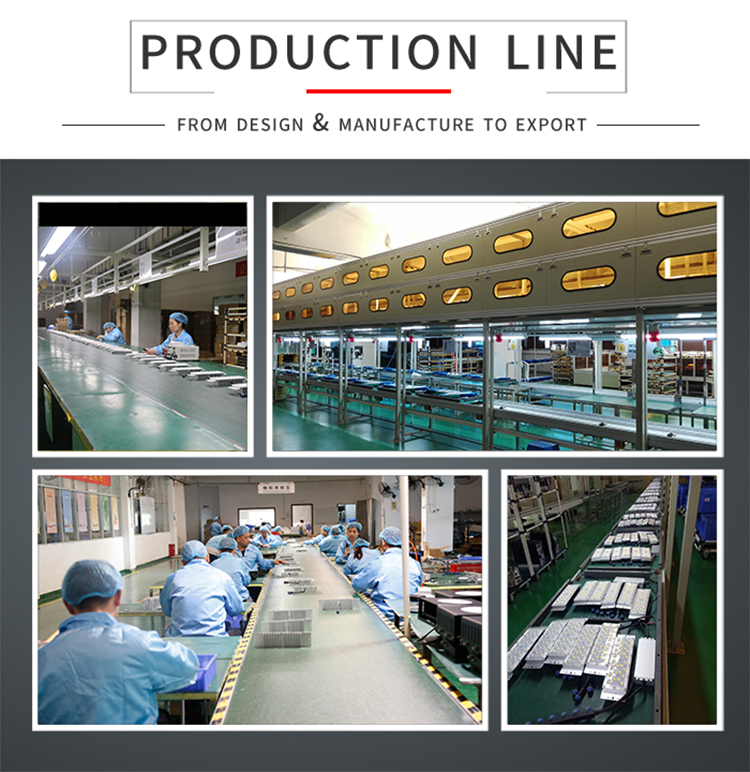

The production line of outdoor led flood light/led street light/led module
About us
Shenzhen Lepower Opto Electronics Corp., Ltd, founded in 2008, is a professional led product manufacturer.
1. We are ISO9001 factory,have over 300 staffs,more than 10,000 square meters modern production plant.
2. Strong independent R & D and innovation capability.
3. Advanced equipment.
That means we can provide you high quality products and delivery on time.
Our products include:led module, led high bay light,led street light and so on.They have been sold all over the world,and are enjoying great reputation with its professional quality.
If you are looking for LED supplier with high reliability, good quality, reasonable price and full series products which can satisfy your various demands, Lepower, a total solution provider, is definitely your first choice!
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.
4. ENEC/CE/RoHS/TUV
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a street/high way ,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:thearrangementand the height of the light poles
C:the requirement of the illumination.
