UFO LED High Bay Lighting 80W 120w 150W 200W 240W Gas Canopy Garage Light Replacement with CE RoHS
- Color Temperature(CCT):5000K (Daylight)
- Lamp Luminous Efficiency(lm/w):165
- Color Rendering Index(Ra):70
- Support Dimmer:Yes
- Lighting solutions service:DIALux evo layout
- Lifespan (hours):50000
- Product Weight（kg）:3.5
- Input Voltage(V):AC 85-265V
- Lamp Luminous Flux(lm):25000
- Working Temperature(℃):-40 - 50
- Lamp Body Material:Aluminum
- IP Rating:IP65
- Place of Origin:China
- Brand Name:LEPOWER
- Model Number:LY-S2-150
- Application:Warehouse
- Light Source:LED
- Warranty(Year):5-Year
- Control Method:Switch Control, Remote Control, Sensor control, APP Control
- Beam Angle:60°/90°/120°
- LED Chip:Bridgelux 5050
- LED Driver:Meanwell,SOSEN
- Power:80w/120w/150w/180w/200w
- Driver efficiency:93%
- PF:>0.95
- Working Time (hours):50000
- CRI (Ra>):70
- Working Lifetime(Hour):50000
180lm/wUFO LED High Bay Light 100W 120W 150W 200W 240W
S2 UFO high bay light series from 100W-240W.
Classic outlook with excellent system efficiency up to 180lm/w.
Patented heat dissipation design with lower weight.
Electric Data | |||||
LY-S2-100W | LY-S2-120W | LY-S2-150W | LY-S2-200W | LY-S2-240W | |
Power | 100W | 120W | 150W | 200W | 240W |
Input Voltage | AC 90-305V 50/60Hz | ||||
Photometric Specifications | |||||
LEDs | Lumileds LED 2835 | ||||
CRI | >70(>80,>90 optional) | ||||

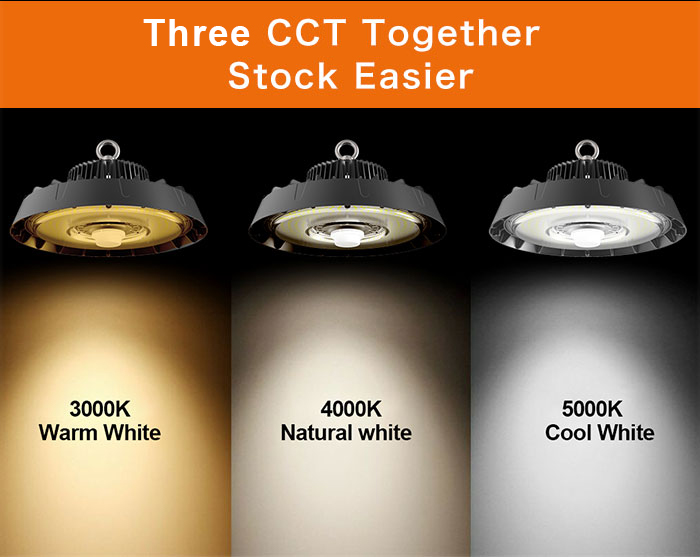

CCT | 3000K/4000/5000K/6000K | ||||
Beam Angle | 60°/90°/120° | ||||
Luminous Efficiency | 160lm/w-180lm/w | ||||
Luminous Flux | 16500lm | 198000lm | 24750lm | 33000lm | 39600lm |
LEDs Qty. | 280pcs | 280pcs | 336pcs | 448pcs | 532pcs |
Mechanial Specifications | |||||
IP Rate | IP65 | ||||
Working Environment | -40℃~50℃,20%~90% RH | ||||
Storage Temperature | -40℃~85℃,10%~90% RH | ||||
Body Material | Aluminum | ||||
Lens Material | PC | ||||
Dimmable | 1-10V,PWM,PIR sensor/Microwave motion sensor/Mobile control sensor | ||||
N.W. | 3.6-3.7KG | 3.9KG | |||
Lamp Size(mm) | Ø360X188mm | Ø360X188mm | |||
Lifespan | >50,000 Hours (Ta=30℃@L70) | ||||

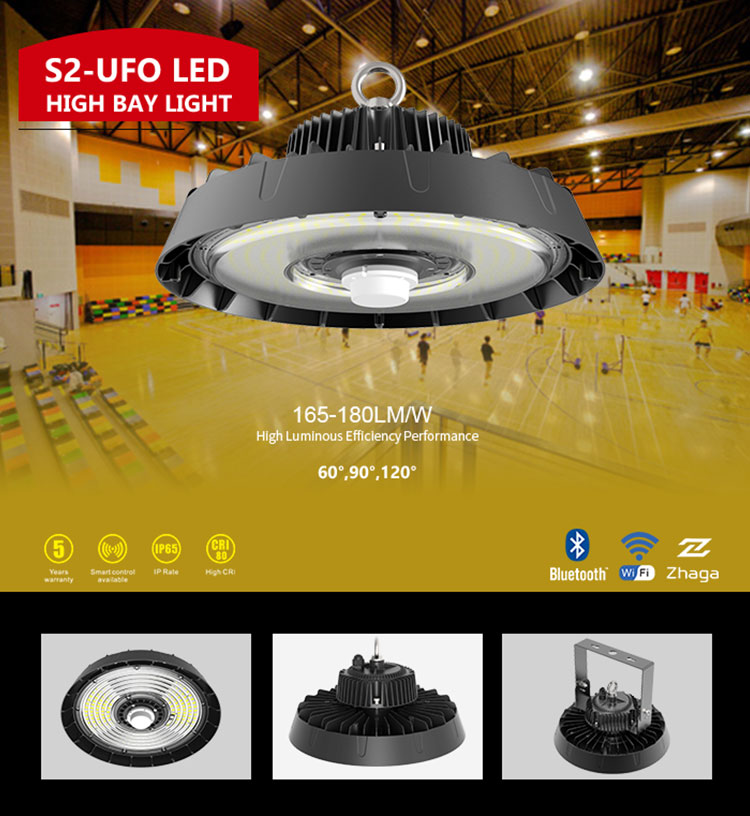

Pictures of UFO LED High Bay Light.
Wider diameter ensure the better heat dissipation.
Product Details

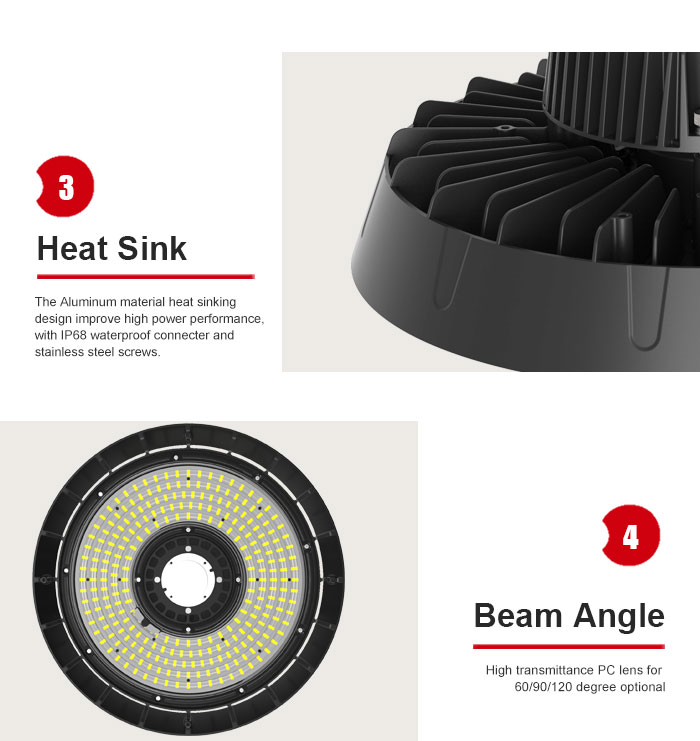

1. Heat sink for aluminium alloy with powder spraying process. Anti-corrosion,no toxicity or pollution.

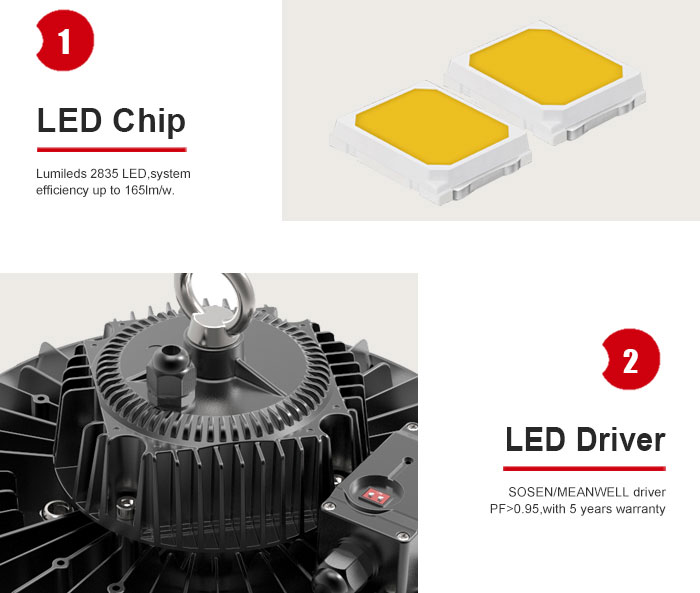

2. Lumiled LEDs, lamp system efficiency up to 165lm/w
3. Accurate engineered lens made of optical grade polycarbonate,light transmittance >98%

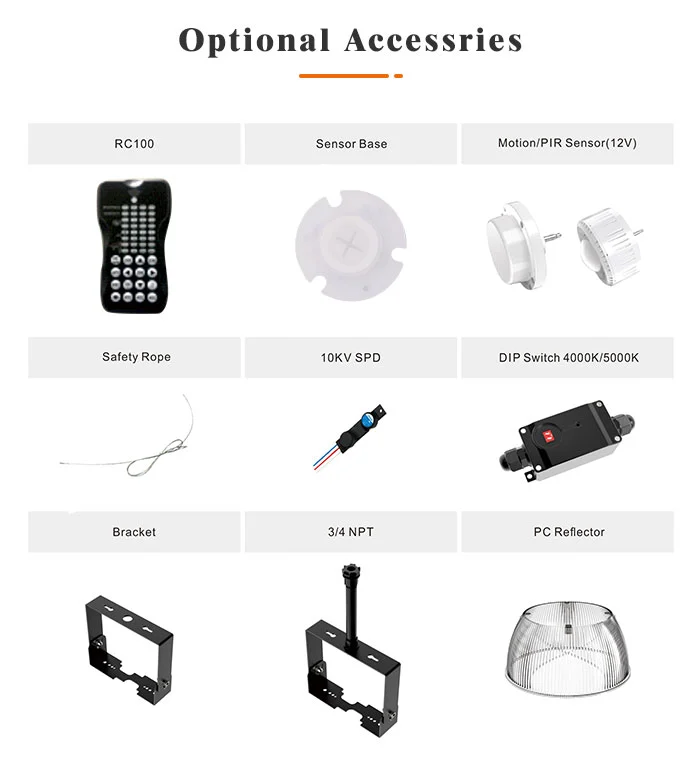

4. Multiple brackets improving installation time.
5. The steel safety rope offer double protection.

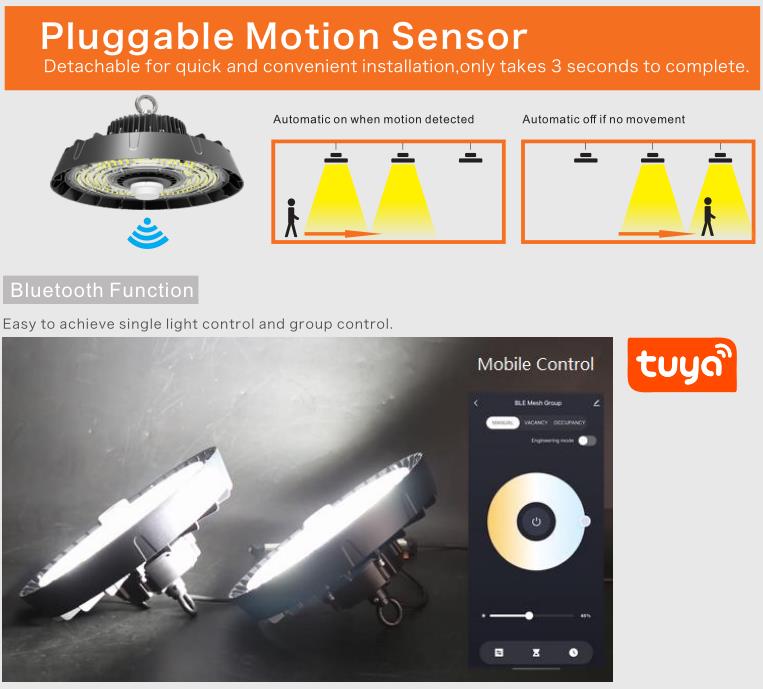

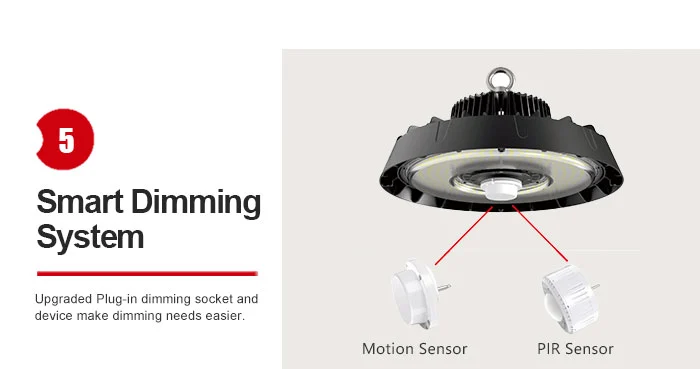

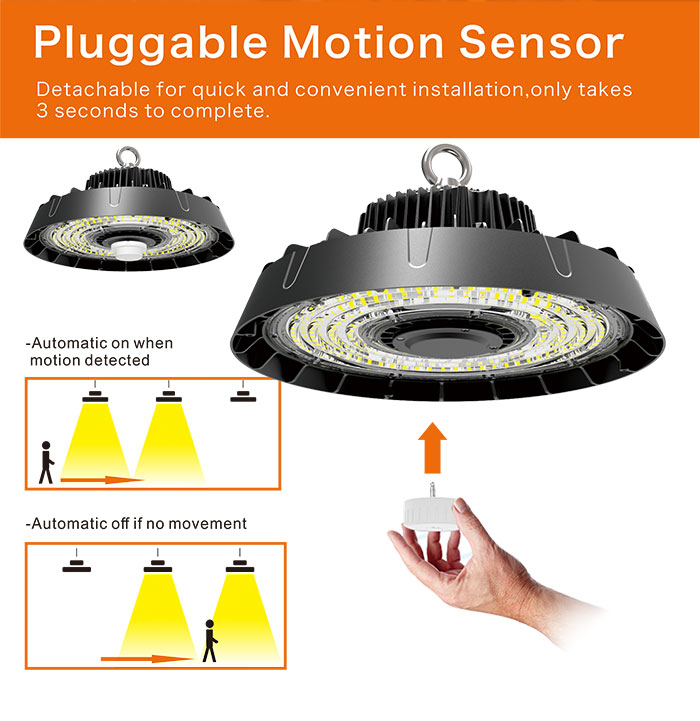

6. Ready for smart system. 1-10V,PWM,PIR sensor/Microwave motion sensor/Mobile control sensor
Maintenance instructions

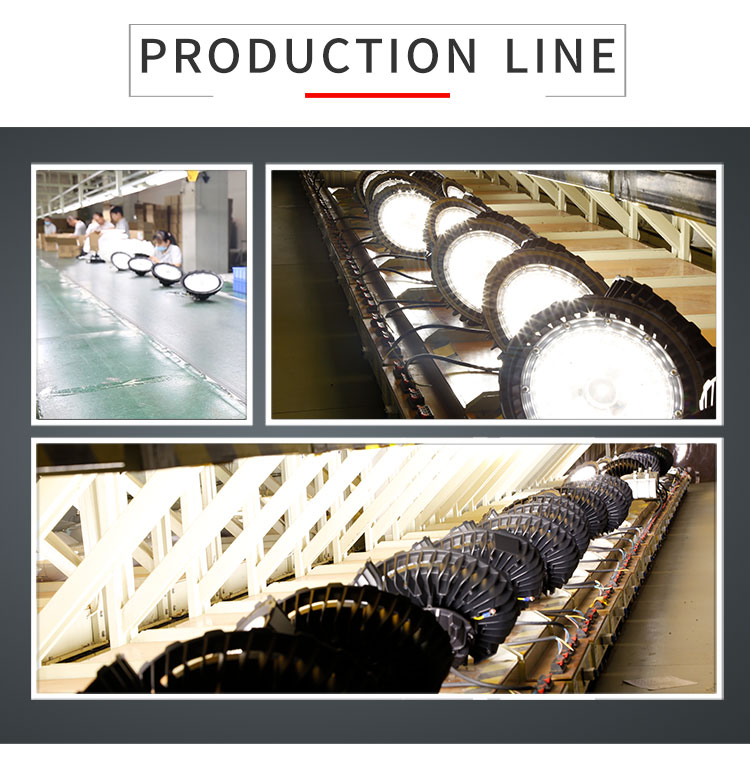

2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third partyto check the quality.
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.

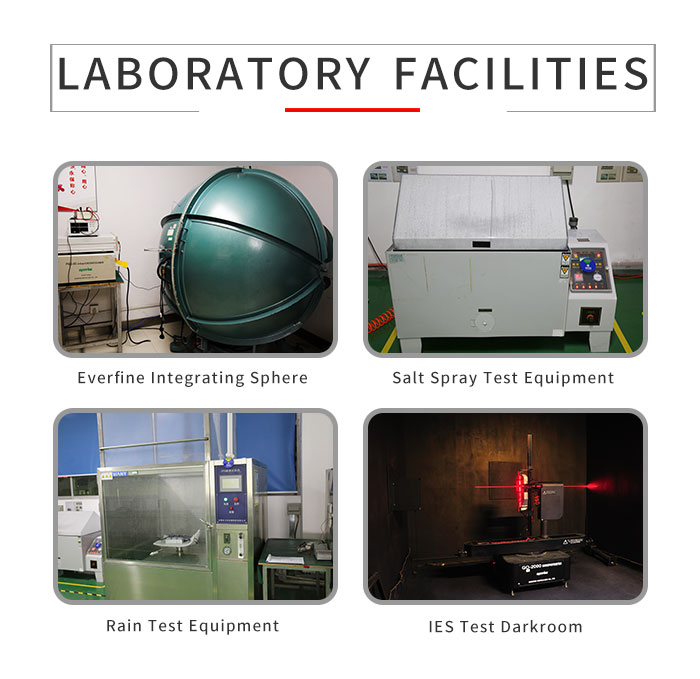

Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.
4. CE/RoHS/IP66/IK10
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.

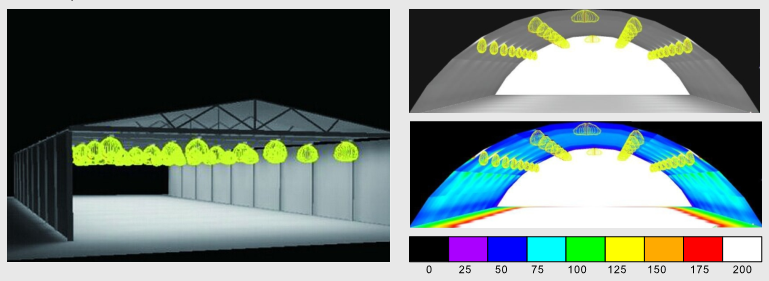

Q4. We now have a warehouse/workshop need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q4.I have a warehouse/workshop need LED lamp,what's your suggestion?
A: please give me the below information:
1. the area of the warehouse/workshop
2. the installation height
3. the requirement of the illumination
