150-180LM/W 30W 40W 50W 60W M13 M14 LED Flood Light Street Light and High Bay Light Module
- Color Temperature(CCT):3000K/4000K/5000K/6000K
- Input Voltage(V):30-48V
- Warranty(Year):5-Year
- Type:LED Modules
- Lighting solutions service:Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout
- Luminous Efficacy(lm/w):180
- Working Hours:50000
- Product Weight（kg）:0.42
- Chip Material:INGAN
- Emitting Color:Natural White
- Luminous Intensity:98
- Luminous Flux(lm):4350-7500
- Optical Attenuation(%):8
- Power:30/40/50/60, 30w/40w/50w/60w
- Power Dissipation:0.3W
- Viewing Angle(°):150x70°,145x100°,24°,36°,60°,90°
- Color Rendering Index(Ra):70
- Color Temperature:3000-6000
- Operating Temperature(℃):-40 - 50
- Storage Temperature(℃):-45 - 55
- Place of Origin:Guangdong, China
- Brand Name:Lepower
- LEDs:3030 LED
- CRI:>70(>80,>90 optional)
- IP Rate:IP66
- Lens Material:PC
- Body Material:Aluminum
- Module Size(mm):300x70x47
- 40PCS/CTN:555*330*365mm
- N.W.(KG):0.42KG/pcs
- Working Time (hours):50000
Why choose us--Lepower?
Shenzhen Lepower Opto Electronics Corp., Ltd, founded in 2008.
1. About 300 staffs, more than 16,000 square meters’ modern production plant and ten thousand-grade static dust-free workshop.
2. Super bright: 150-180LM/W@50W
3. Certificated engineer will help you to make dialux for your project.
4. OEM and ODM service is available.
5. Lead time: 5-7 working days less than 1000pcs
6.Free sampletesting available.
Cost-effective 30W 40W 50W 60W LED Module for street light / tunnel light / flood light / high bay light

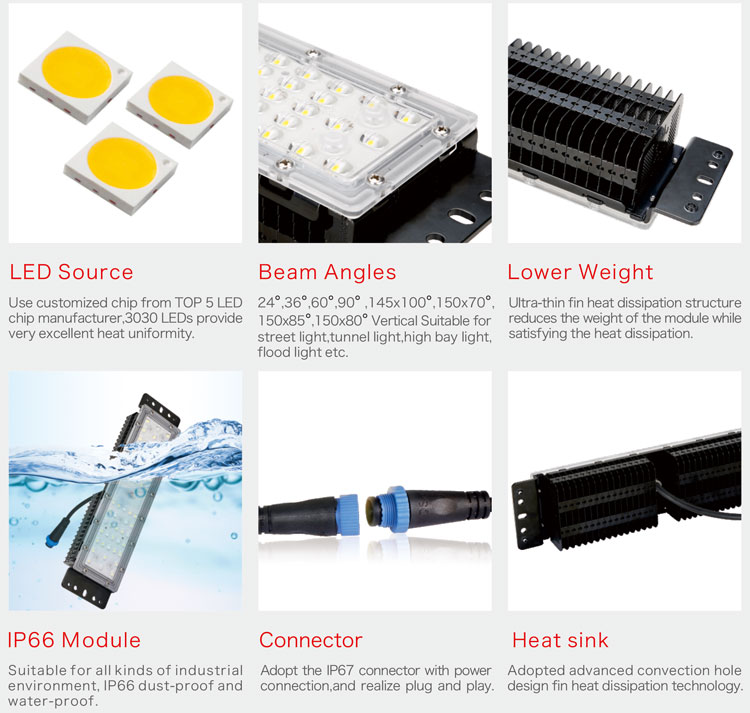

Product feature

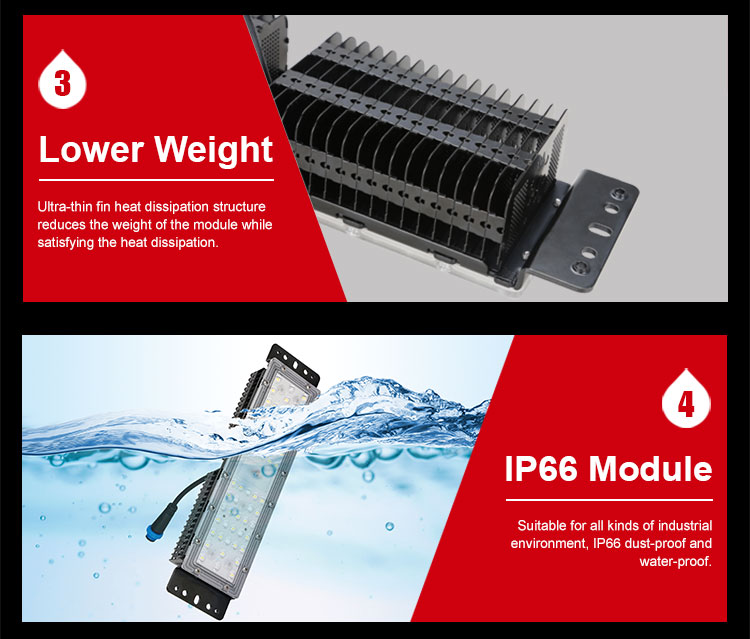

- Adop ted high heat conduction fin heat dissipation technology, advanced convection hole design which can rapidly dissipate heat when installed in the lamp.
- Excellent operating temperature -40°C ~ 50°CHigh performance design with multi-chips package 3030 LED source.Stable performance,low light failure and NO dead lights.
- Variety beam angles 24°,36°,60°,90°, 145x100°,150x70°,150x85°, 150x80° vertical.
- Easy to assemble and maintain with national standard M15 electrical interface, achieved plugged and play, only need loosening the screw during maintenance.
- Green product, no UV, IR radiation or mercury pollution.Passed IEC62471.
- With excellent housing design reach IP66 rating.
- Long life-span over 50,000 hours, 5 years warranty.
Electric Data | ||||
Model | LY-M13 | |||
Power | 30W | 40W | 50W | 60W |
Input | 30V/1A | 30V/1.33A | 30V/1.67A | 30V/2A |
36V/0.83A | 36V/1.11A | 36V/1.39A | 36V/1.67A | |
48V/0.63A | 48V/0.83A | 48V/1.04A | 48V/1.25A | |
Photometric Specifications | ||||
LEDs | 3030 LED | |||
CRI | >70(>80,>90 optional) | |||
Luminous Efficiency | 150-180lm/w
| |||
CCT | 2800K/4000/5000K/5500K | |||

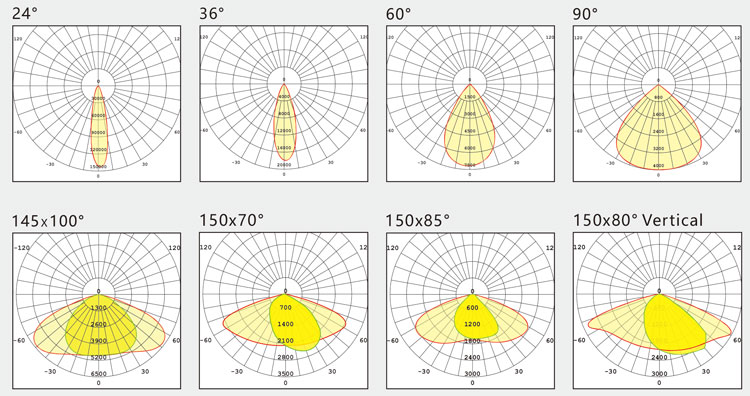

Beam Angle | 24°,36°,60°,90°,145x100°,150x70°,150x85°,150x80° Vertical | |||
LED Qty. | 60pcs(30V/36V) / 56pcs(48V) | |||
Mechanical Specifications | ||||
IP Rate | IP66 | |||
Working Environment | -40℃~50℃,20%~90% RH | |||
Storage Temperature | -40℃~85℃,10%~90% RH | |||
Body Material | Aluminum | |||
Lens Material | PC | |||
Connector Size | M15 | |||
Wire Length | 200mm/300mm optional | |||
Module Size(mm) | 300*75*50mm | |||
ModuleSize(inch) | 11.81*2.95*1.97in | |||
Lifespan | >50,000 Hours | |||
Packing Information | ||||
Module Dimension | 300x70x47mm | |||
40PCS/CTN | 425*350*455mm | |||
N.W. | 0.42KG/pcs | |||

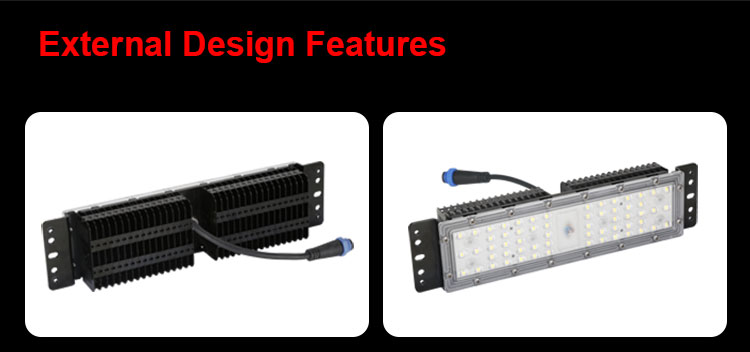

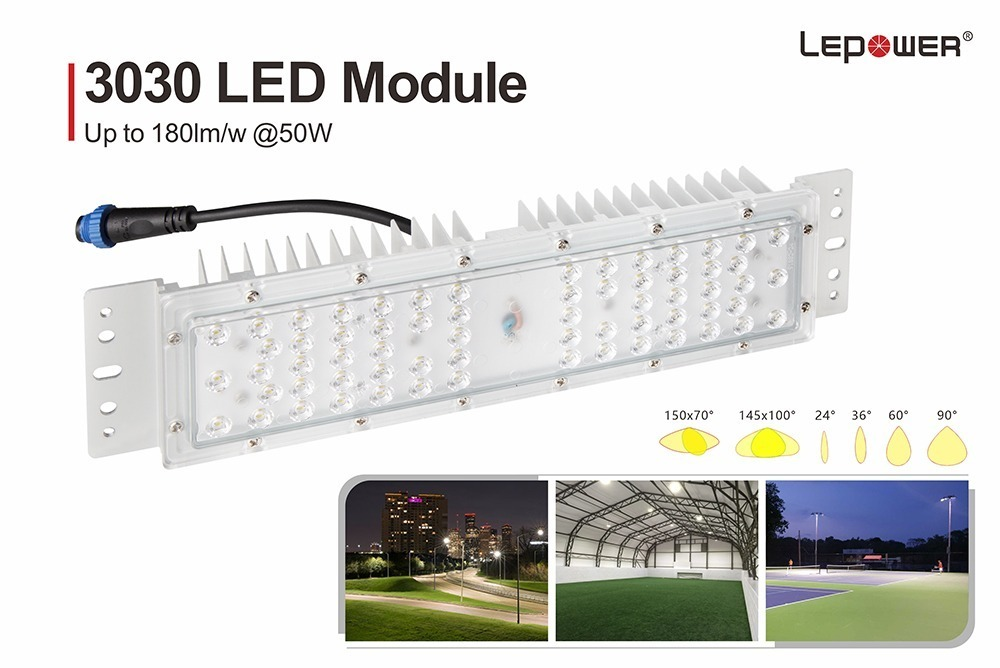

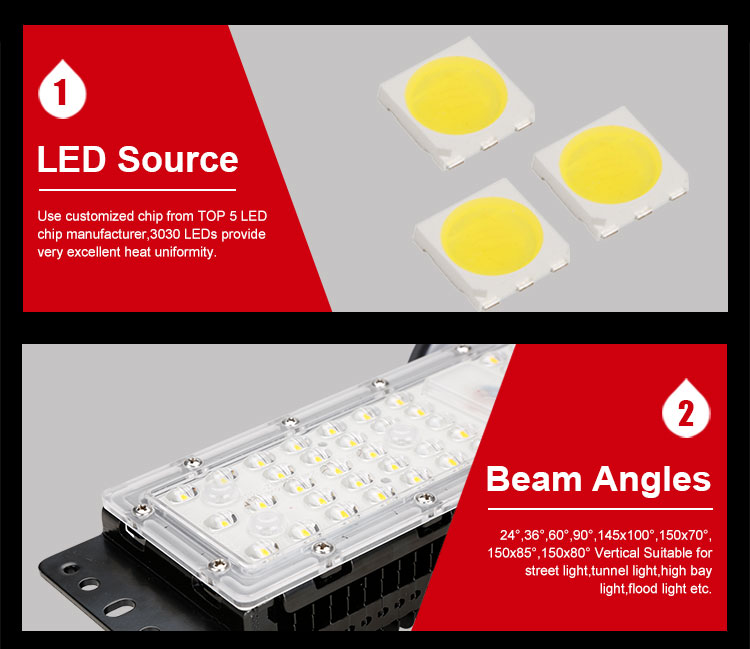

Product Pictures

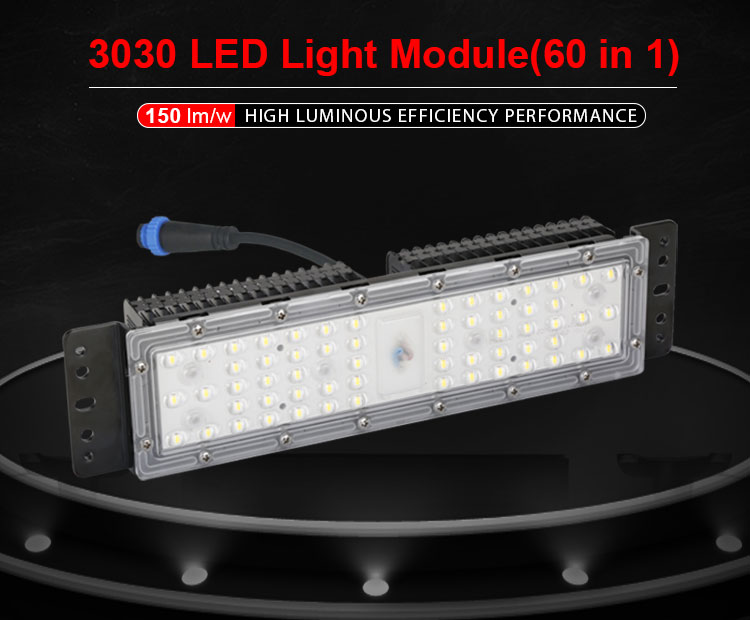

LED Module for street light / tunnel light / flood light / high bay light

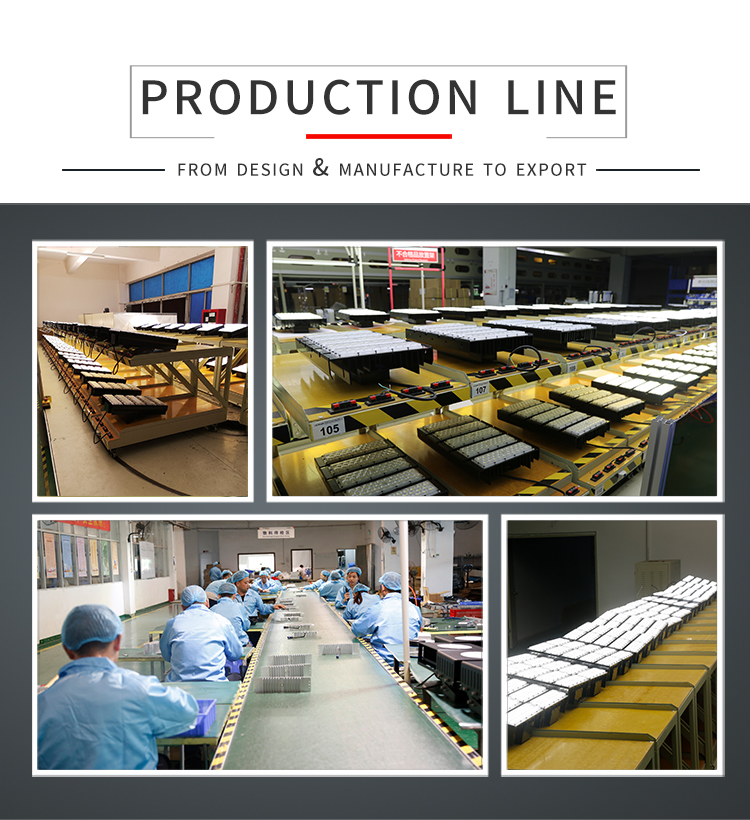

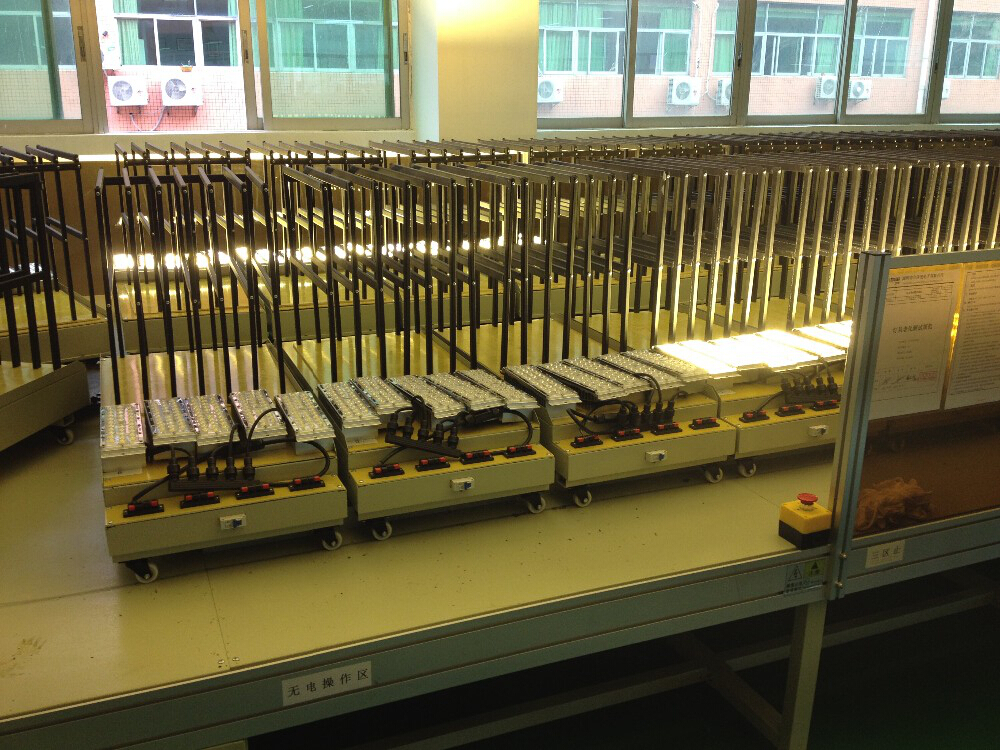

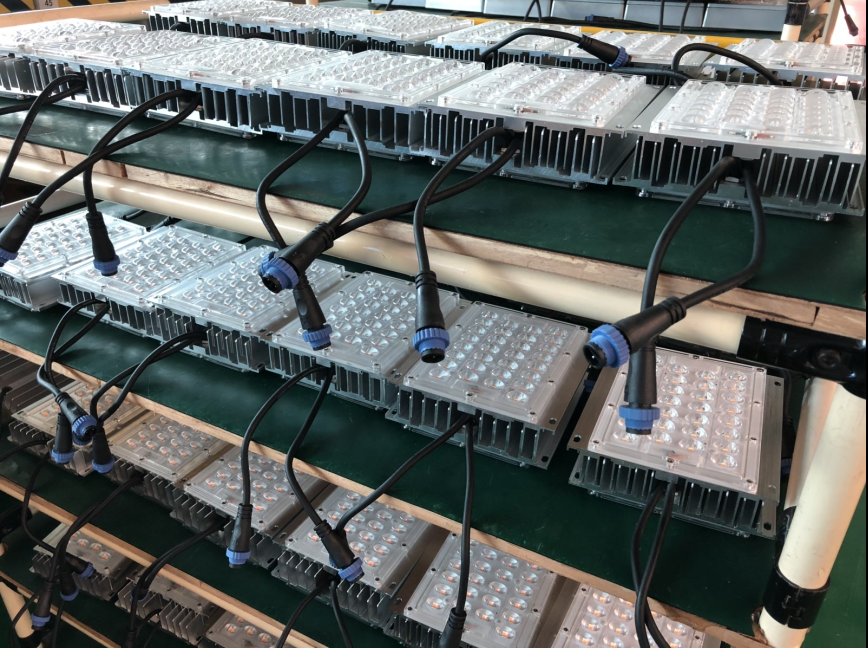

Aging test
LED Module for street light / tunnel light / flood light / high bay light

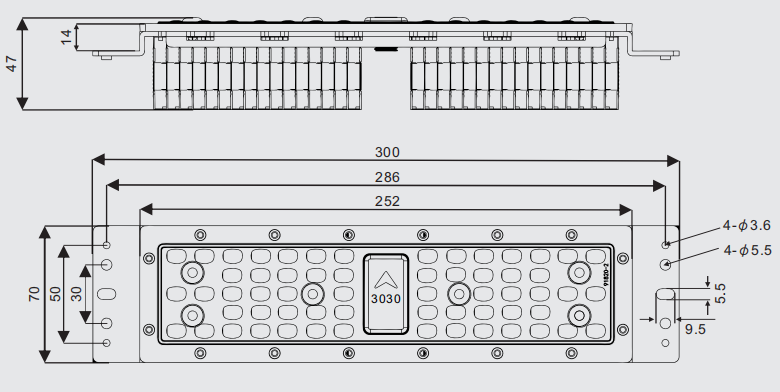

Dimension

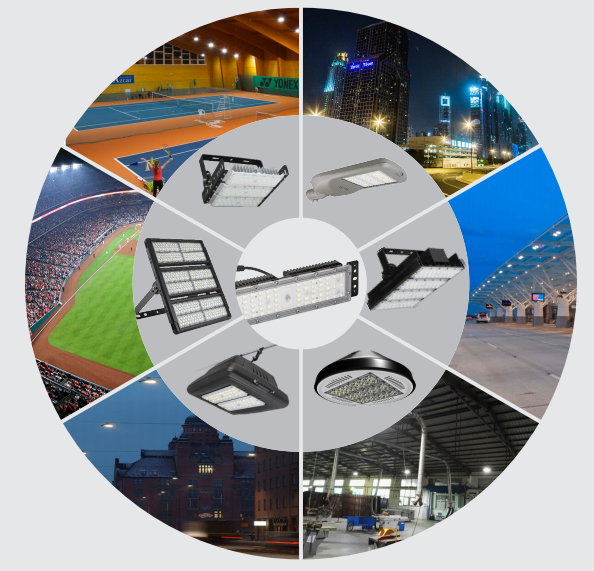

Application
Applies to workshop, industry sites, sports center, gas station, car park, waiting room, train station, harbor, wharf and other large energy-efficient lighting.
About Lepower
Shenzhen Lepower Opto Electronics Corp.,Ltd (STOCK CODE:838452) founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power LED encapsulation,optical design and LED lighting researching and developing It has been honored as Chinanational high-tech enterprise,China Top 100 LED Lighting Application Enterprise, Forbes China Top 100 Up-and-Comer Private Unlisted Company.

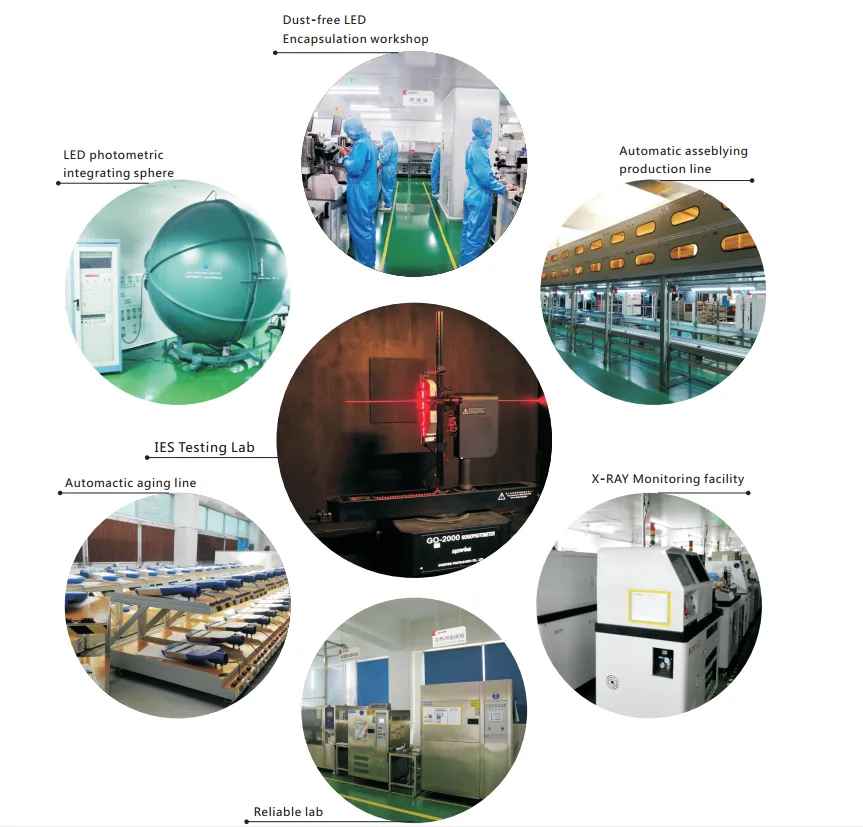

Lepower, with more than 16,000 square meters modern productionplant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R&D and innovation capability in China’s LED industry. Lepower has got many national patents, which is able to offer customers professional LED lighting solutions.Lepower strictly carry out ISO9001:2008 quality management system, and most of the products got ENEC,CB,CE,ROHS,LM-80,LM-79,CQC certification etc.
Lepower trade affairs
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.
4. ENEC/CE/RoHS/CB/IP66/IK10
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.
After sales service
Terrific after-sales service: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
For problematic items, We are ready to exchange them or replace them with an equivalent upon our receipt of previous.
