IP67 Zhaga Standard 200lm 30W 40W 50W LED Flood Lamp Heatsink 24V 48V DC LED Street Light Module Retrofitting
- Warranty(Year):5-Year
- Type:LED Modules
- Lighting solutions service:DIALux evo layout
- Luminous Efficacy(lm/w):200
- Chip Material:INGAN
- Emitting Color:Natural White
- Luminous Intensity:6500-7500mcd
- Luminous Flux(lm):8500
- Optical Attenuation(%):3
- Power:30W
- Power Dissipation:1.8

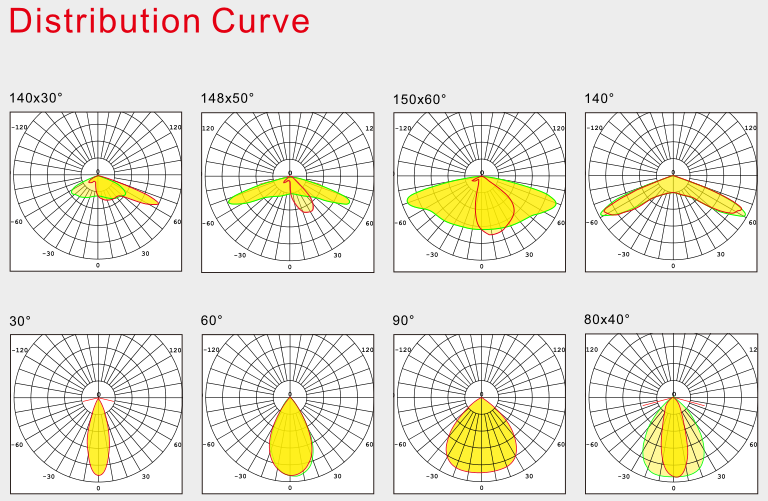

- Viewing Angle(°):140x30°/148x50°/150x60°/140°/30°/60°/90°/80x40°
- Color Rendering Index(Ra):70
- Color Temperature:5000K
- Operating Temperature(℃):-40 - 50
- Storage Temperature(℃):-40 - 50
- Place of Origin:Guangdong, China
- Brand Name:LEPOWER
- Heat-sink color:Sliver

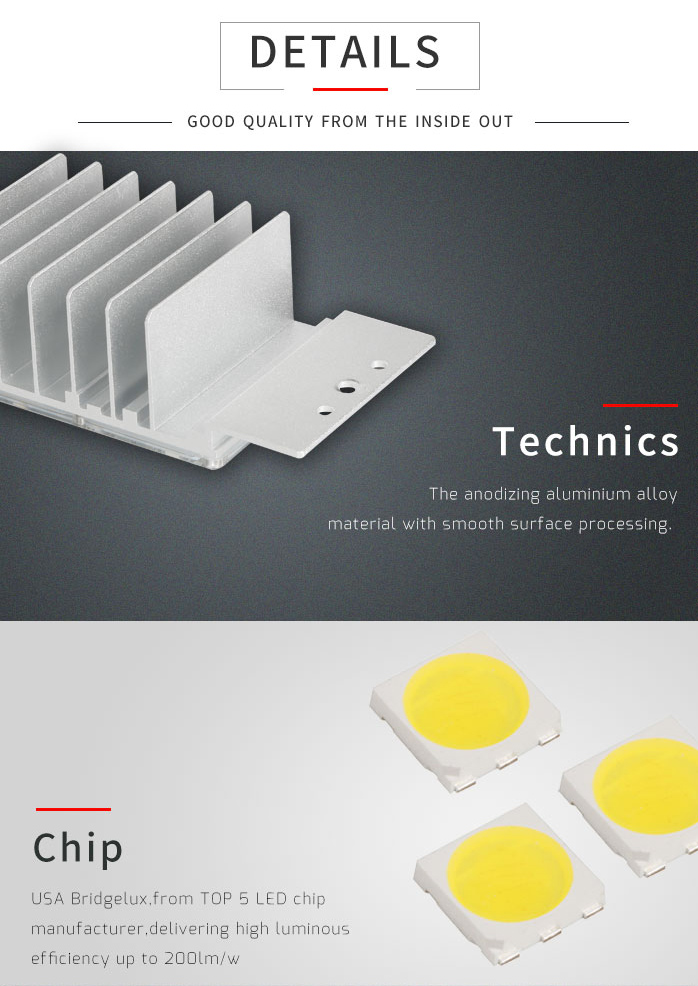

- Heatsink Material:Aluminum 6063-T5
- LED type:5050
Shenzhen LEPOWER LED Corp. Which is a professional manufacturer of 160lm/w
LED industrial Lighting. We own a ISO9001 16000m2 factory. More than 80,000 pcs
LEPOWER LED street light installed worldwide.
IP67 12W-40W LED Module For Street Light/Flood light/High bay light Retrofitting
40x30°/148x50°/150x60°/140°/30°/60°/90°/80x40°

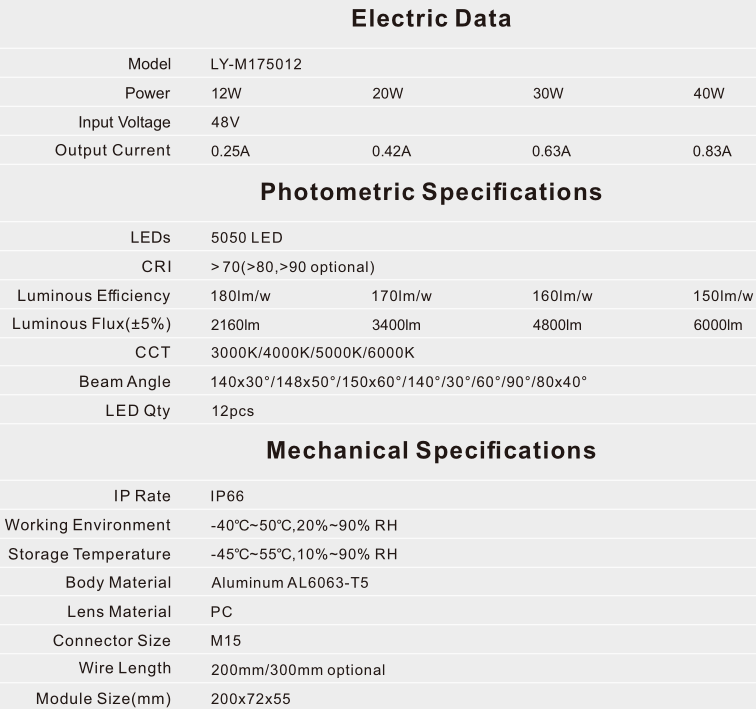

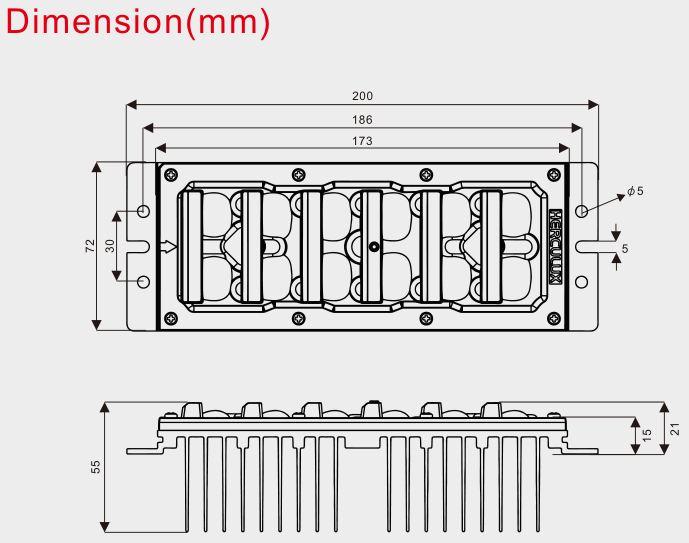

LED module M17 series 200*72mm

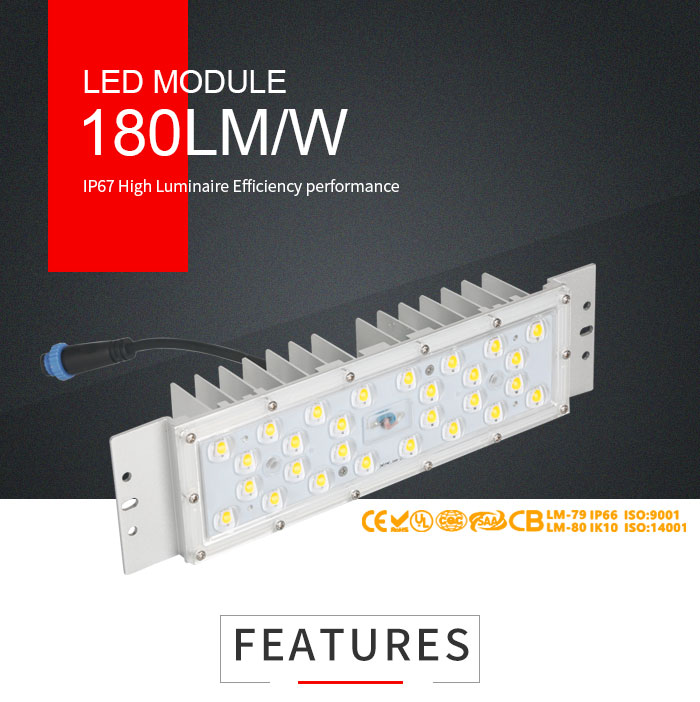

IP67 200lm 30W 40W 50W LED Module For Street Light Retrofitting
Type II(150x70°) Type IV(150x90°) 145x100°

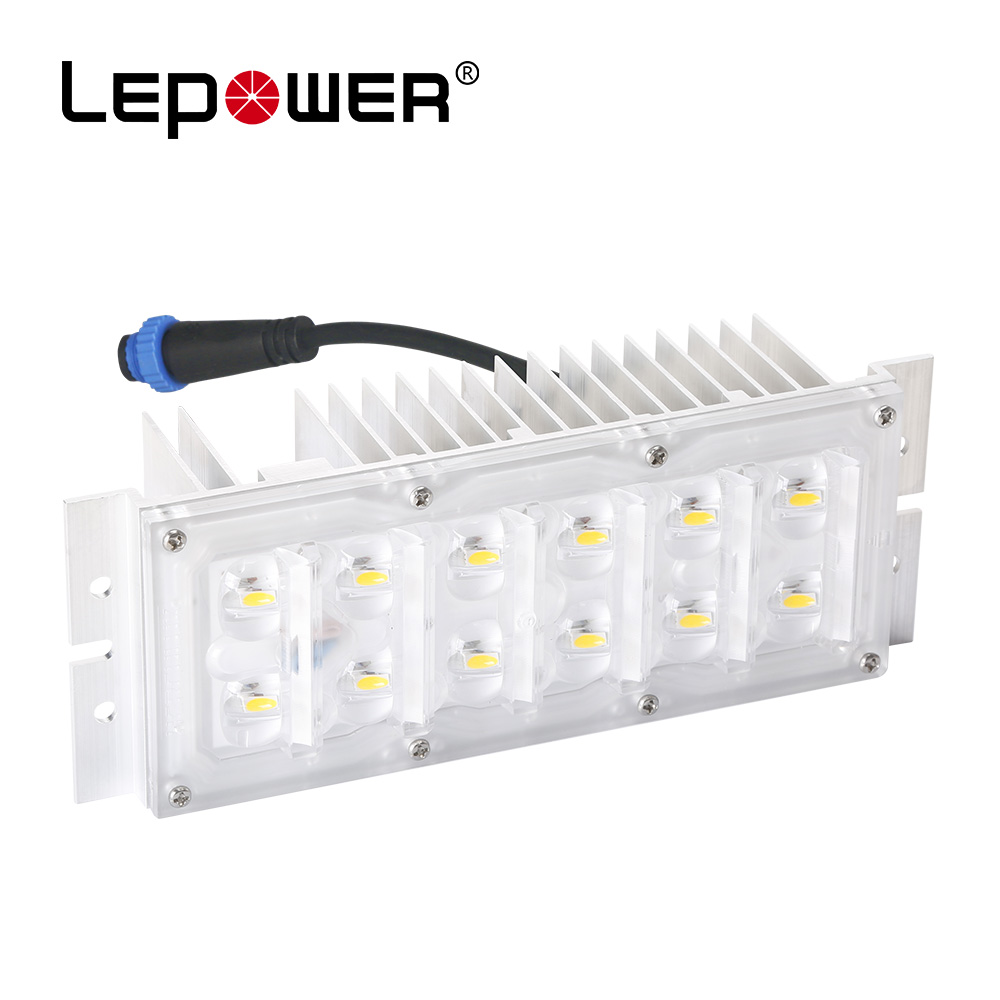

LED Street light module M06 series 300*75mm
Name | Nominal Value | |||
Power | 30W | 40W | 50W | 60W |
Input Voltage | 42.45V | 43.04V | 43.47V | 43.88V |
Input Current | 0.7A | 0.95A | 1.15A | 1.35A |
CCT | 5000K | 5000K | 5000K | 5000K |
Luminous Efficiency | >195Lm/W | >185Lm/W | >175Lm/W | >165Lm/W |
CRI | >70 | >70 | >70 | >70 |

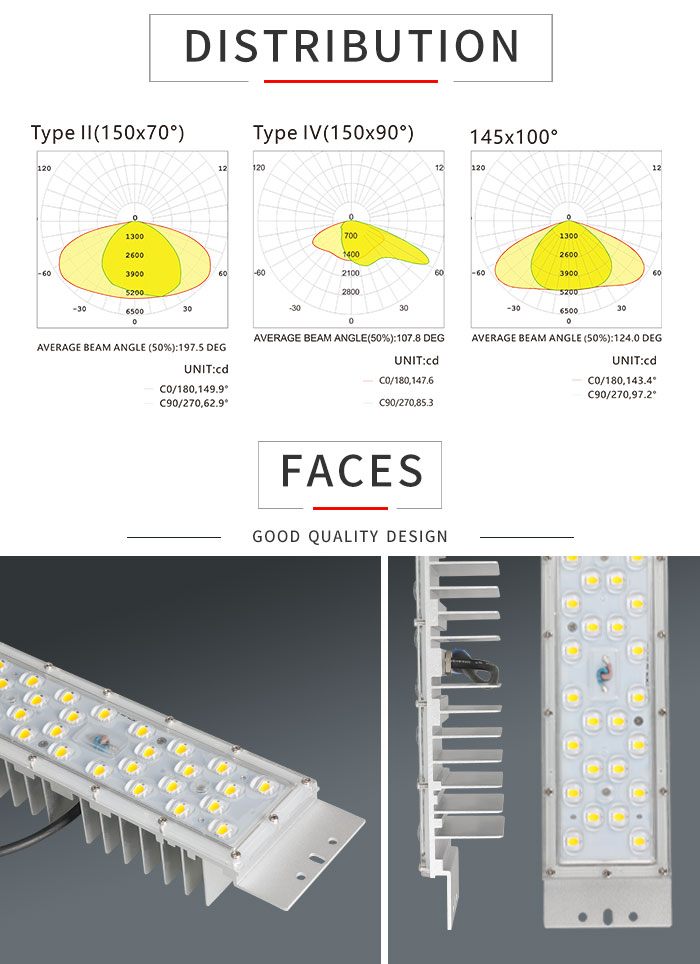

Beam Angle | Type II(150x70°) Type IV(150x90°) 145x100° | |||
LEDs | Bridgelux 5050 | |||
LED Qty. | 28pcs | |||
IP Rate | IP67 | |||
Working Environment | -40℃~50℃, 20%~90% R.H | |||
Storage Temperature | -40℃~85℃, 10%~90% R.H | |||
Life time | >50000H | |||

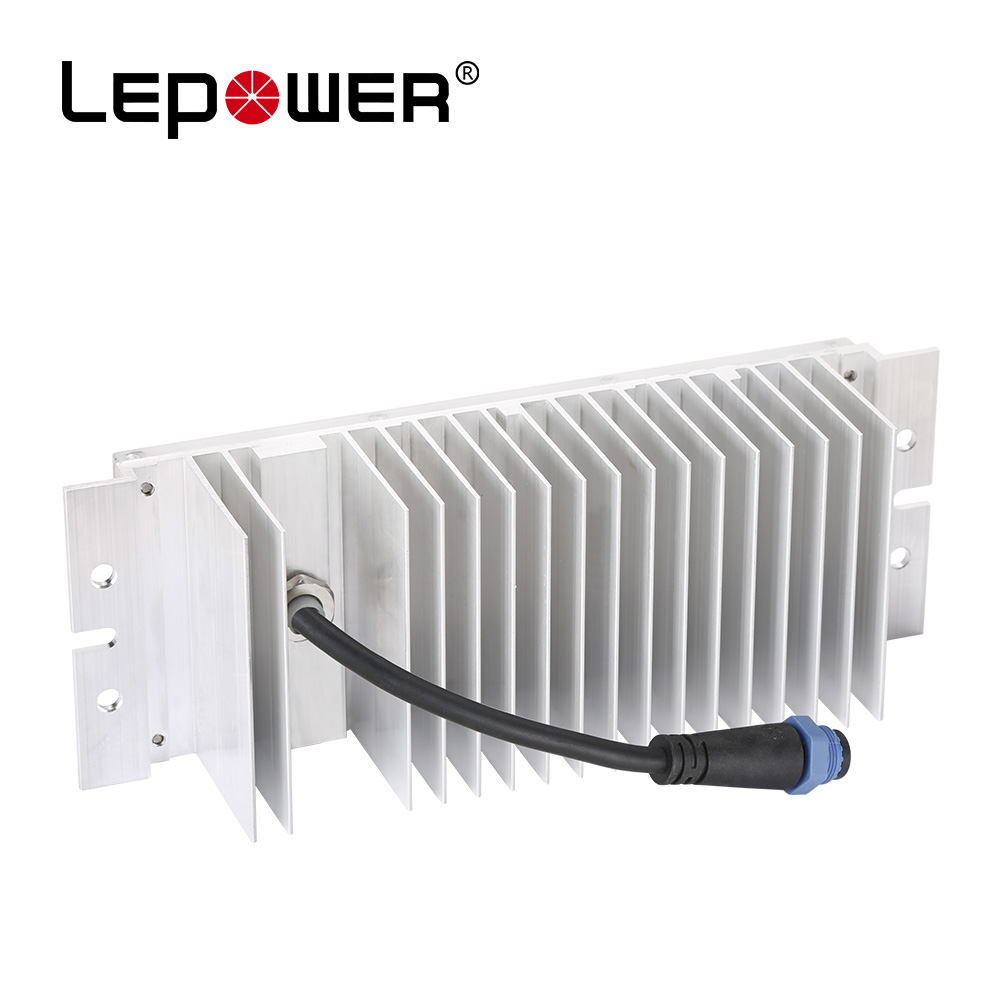

Body material | Aluminum heatsink+PC lens | |||

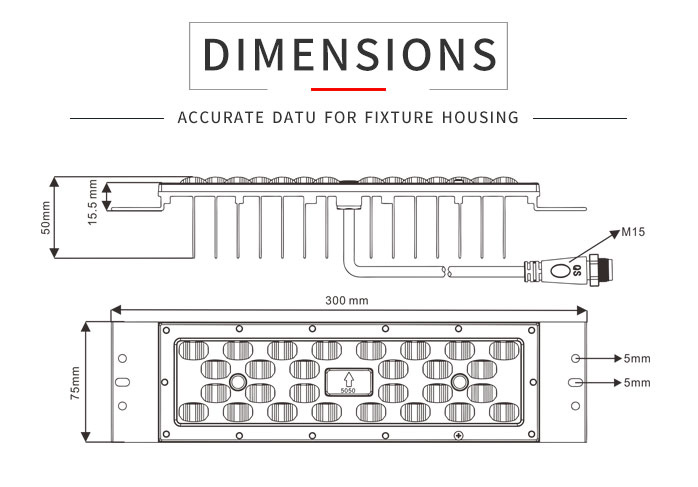

Size of Lamp | 300*75*50mm | ±5mm | ||
2PCS/box | 306*87*67mm | ±5mm | ||
40PCS/carton | 510*325*325mm | ±5mm | ||
Net weight | 0.52kg | ±0.1kg | ||
Certificates | UL, CE, LM80, IP67,IK10 | |||
Type II(150x70°) Type IV(150x90°) 145x100°
LED Street light module series
1. High efficiency:160-180lm/W LED street light module,20% higher than ordinary LED light, compared with Sodium lamp, 60% energy saved.

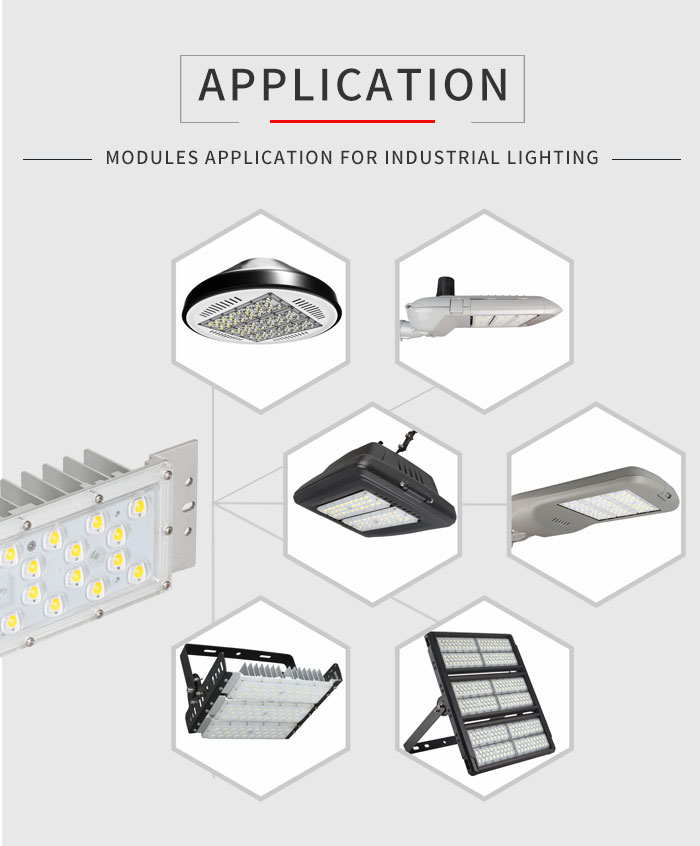

2. This SKD 30-60W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps 50W-1200W.
3. Apply to LED driver, very easy for repair/replacement."Plug and Play"system suitable for SKD.

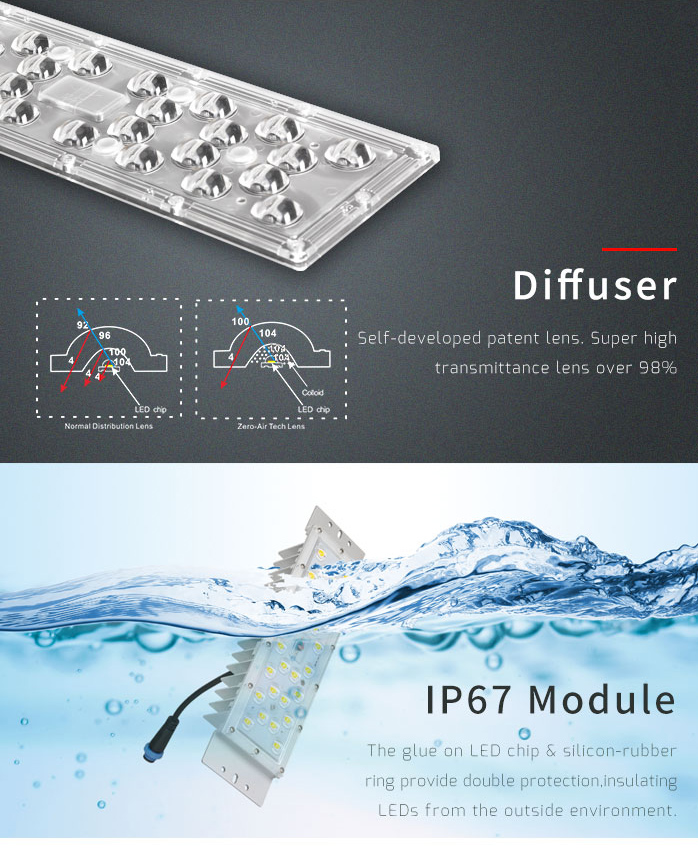

4. Optic lenses are available for projects that need smaller beam angles.

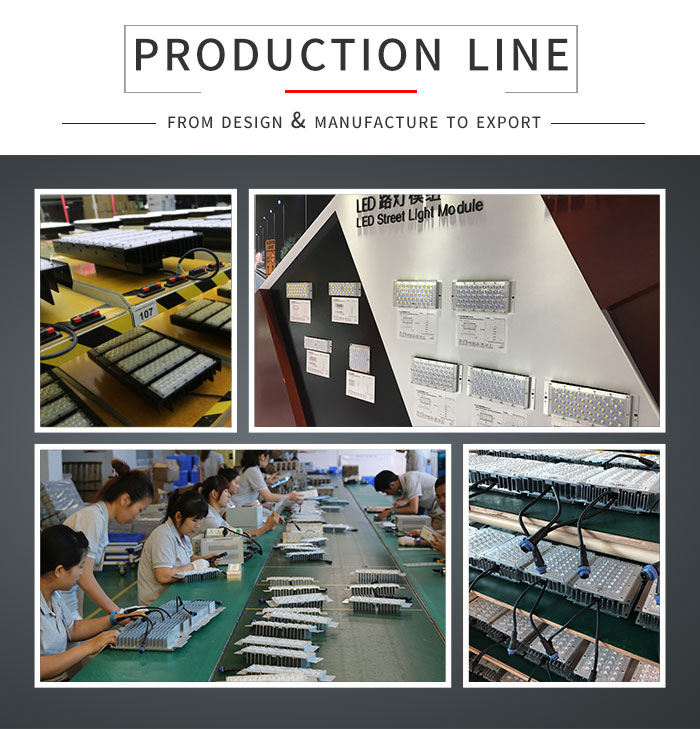

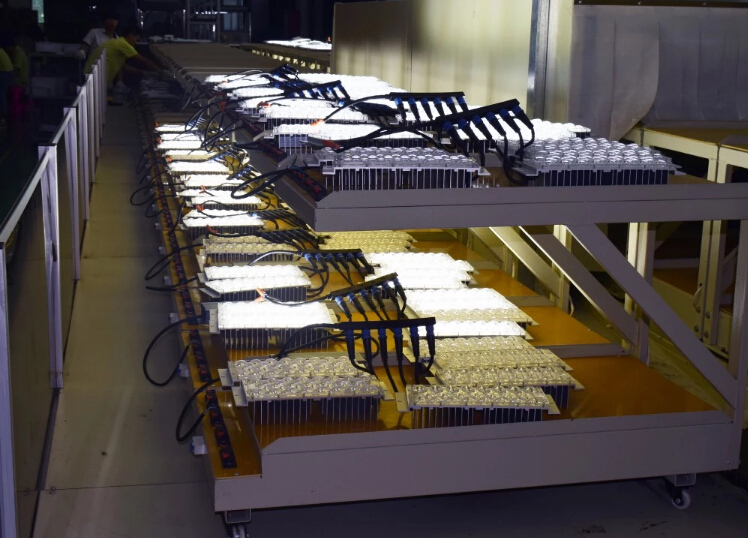

Production Pictures
Company information
LEPOWER, founded from 2008, is a manufacturer & wholesale company. LEPOWER has been specialized in
DESIGN, MANUFACTURE,WHHOLESALE,EXPORT for many years which focus on high power lighting solution,
LED Module,LED Street Light, LED Flood Light,LED High Bay Light.
Our products have been passed for UL,CB,CE,Rohs,SAA,CB,LM79,LM80. ISO:9001, ISO:18001.
We also attend international lighting fair all over the world and discuss with customers face to face.
LEPOWER's sales team could provide fast contact and all support for your needs.
Our services
1.Factory price, large monthly output.
2.5 years warranty, high quality guarantee.
3.professional Export service, easy to communicate and save your time.
4.Timely delivery, let you win biggest markets advantage.
5.Satisfied After-sales service, to be your reliable supplier.
6.Any question will be get answer within 12 hours.
7.Strong R & D team, welcome OEM and ODM order.
FAQ
Q1. Can I have a sample order for LED street light module?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample need 3-5 days, mass production time needs 10-15 days ,It's according to the order.
Q3. Do you have any MOQ limit for LED street light module order?
A: Low MOQ,1pcs for sample available.Bulk order 40pcs Minimum.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship Sample by DHL,FedEx and TNT . It usually takes 3-5 days to arrive. mass products are shipping
by sea or airport. This up to your choice.
Q5. How to proceed an order?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q6. Is it OK to print my logo on LED module and carton?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our LED street light module.
Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
