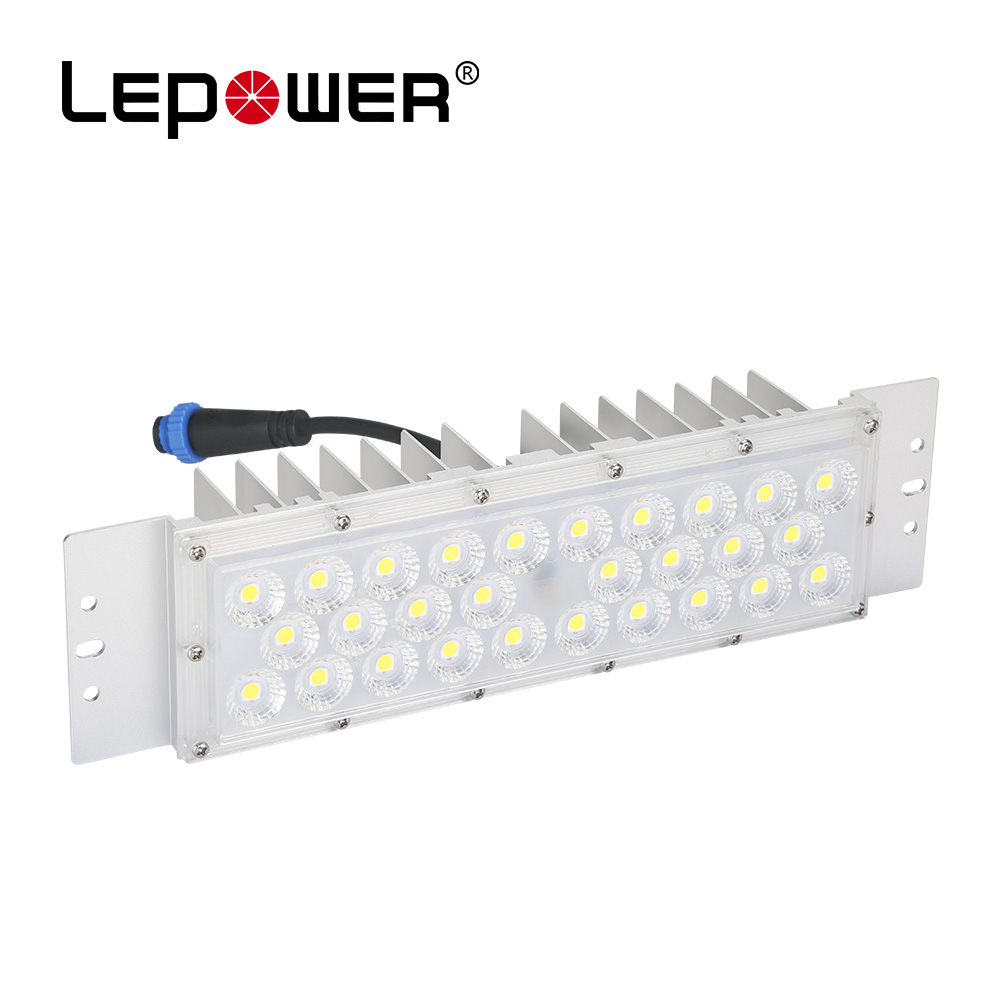

Model No: LY-MHB5028-75

Factory Price 30W 40W 50W 60W 190-210lm/W SMD 5050 High Lumen LED Highbay Light Module Flood Light Module

minimum order :
1 piece
Quantity :
$10.00 - $12.00 / piece
Contact Now
  • Color Temperature(CCT):3000K/4000K/5000K/6000K
  • Input Voltage(V):42-45V
  • Warranty(Year):5-Year
  • Type:LED Modules
  • Support Dimmer:Yes
  • Lighting solutions service:Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout
  • Luminous Efficacy(lm/w):190
  • Working Hours:50000
  • Product Weight（kg）:0.52
  • Chip Material:INGAN
  • Emitting Color:Natural White
  • Luminous Intensity:98
  • Luminous Flux(lm):5700-9600
  • Optical Attenuation(%):8
  • Power:30/40/50/60, 30w/40w/50w/60w
  • Power Dissipation:0.3W
  • Viewing Angle(°):25/40/60/90/150*70
  • Color Rendering Index(Ra):70
  • Color Temperature:3000-6000
  • Operating Temperature(℃):-40 - 50
  • Storage Temperature(℃):-45 - 55
  • Place of Origin:Guangdong, China
  • Brand Name:Lepower
  • Model:LY-MHB5028-75
  • LEDs:5050 LED
  • CRI:>70(>80,>90 optional)

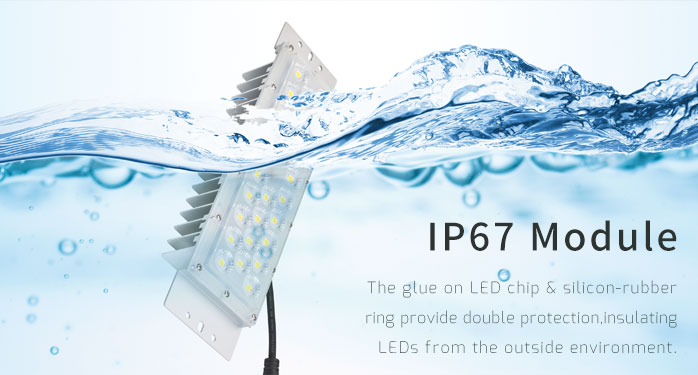

  • IP Rate:IP66
  • Lens Material:PC

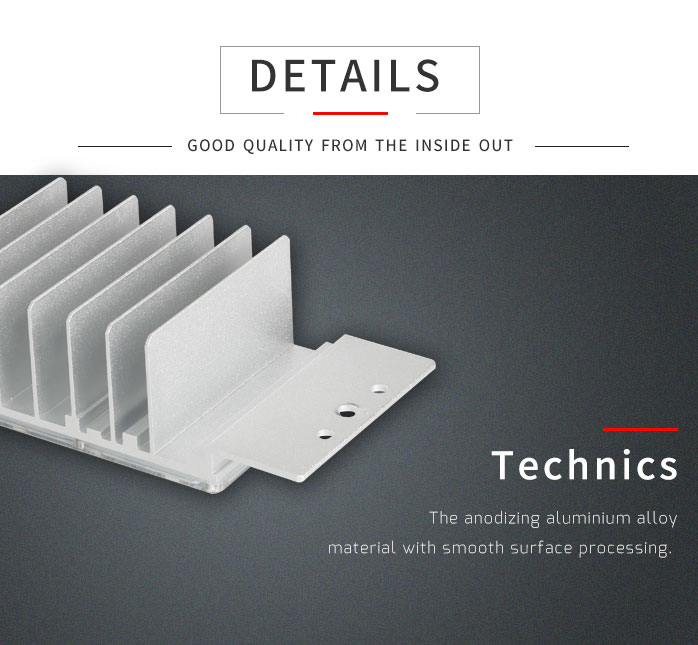

  • Body Material:Aluminum AL6063-T5

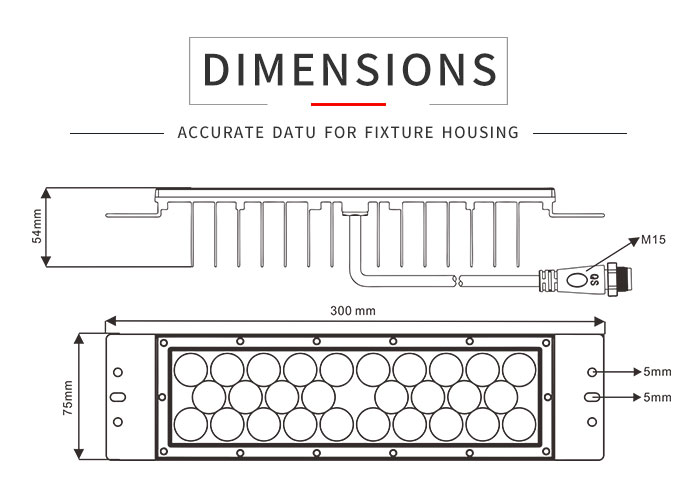

  • Module Size(mm):300x75x54
  • 40PCS/CTN:420x330x380mm
  • Working Time (hours):50000

Product Description

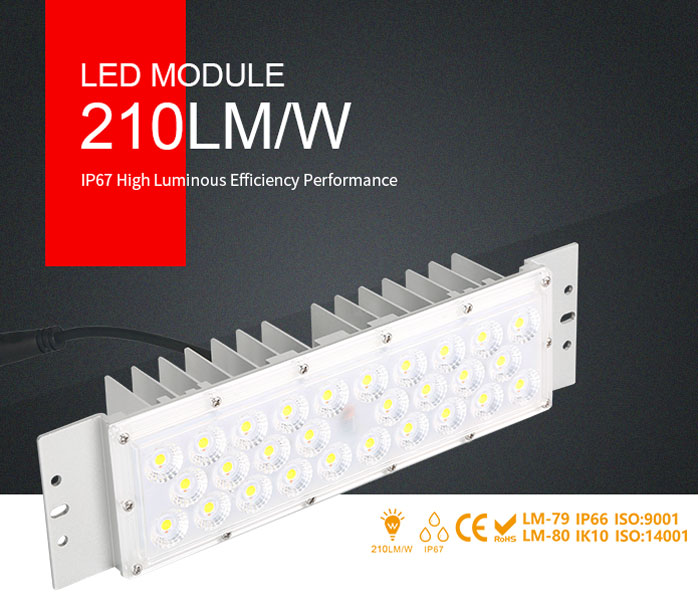

210lm/w High Efficiency 30W 40W 50W 60W LED flood light/street light module.


Product advantages are as follows:

1. High efficiency:190-210lm/W,50% higher than ordinary high bay light, compared with Sodium lamp, 80% energy saved.

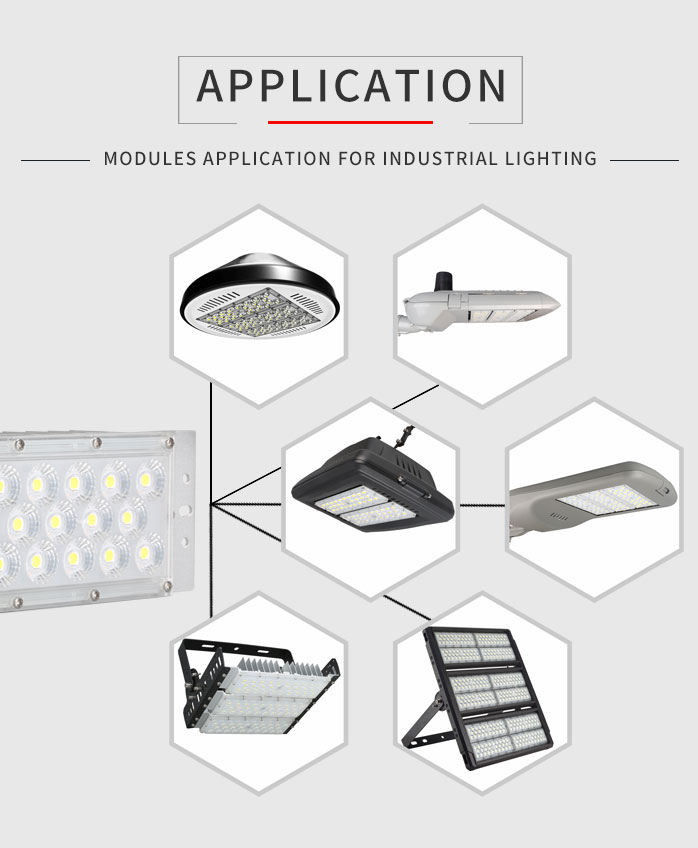

2. Best choice to retrofit the old lamps or assemble power lamps like 50w, 100W, 200W, 500W and so on.
3. Apply CE driver, very easy for repair/replacement

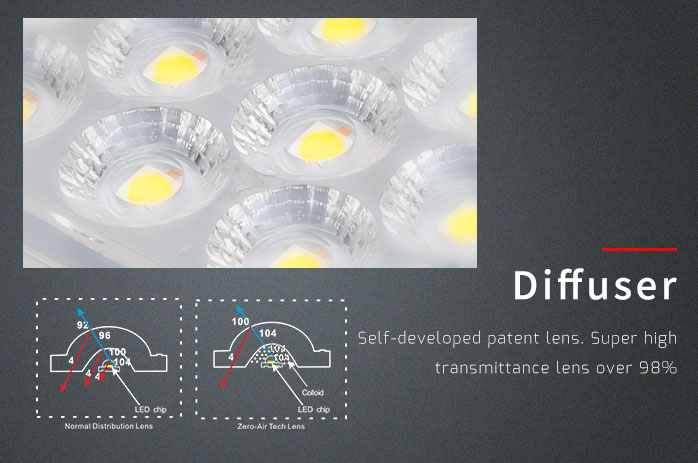

4. Optic lenses are available for projects that need smaller beam angles.
5. Easy assembly and disassemble:Just install the lamp body to its place with screws, and loosen the screws when repair.

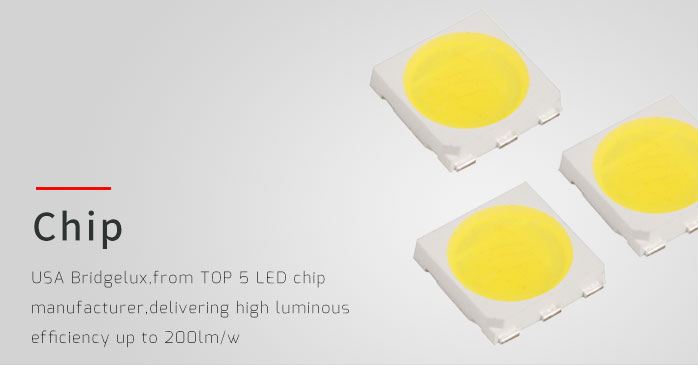

6.High performance multi-chips package 5050 LED source, stable performance, low light failure and no dead lights.


Power
Output Current
Luminous Efficiency
Beam Angle
N.W.(KG)
Module Size(mm)
30W
0.72A
210lm/w


25°/40°/60°/90°/150°


0.52KG/pcs


300x75x54
40W
0.93A
200lm/w
50W
1.14A
195lm/w
60W
1.33A
190lm/w

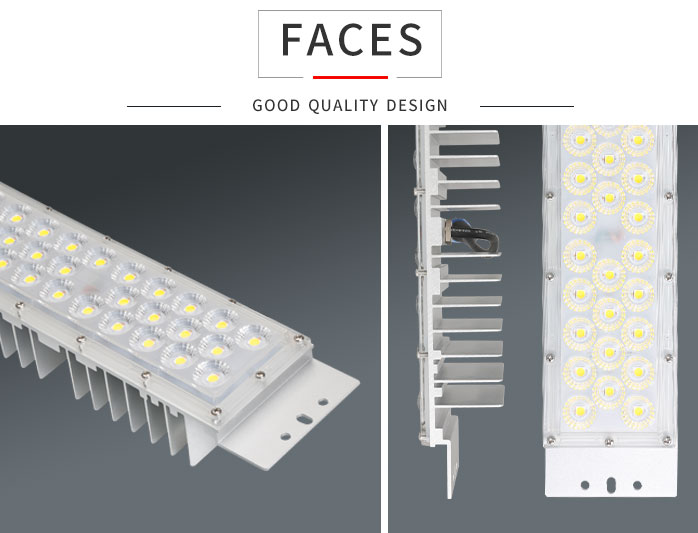

Detailed Images
















Product Presentation

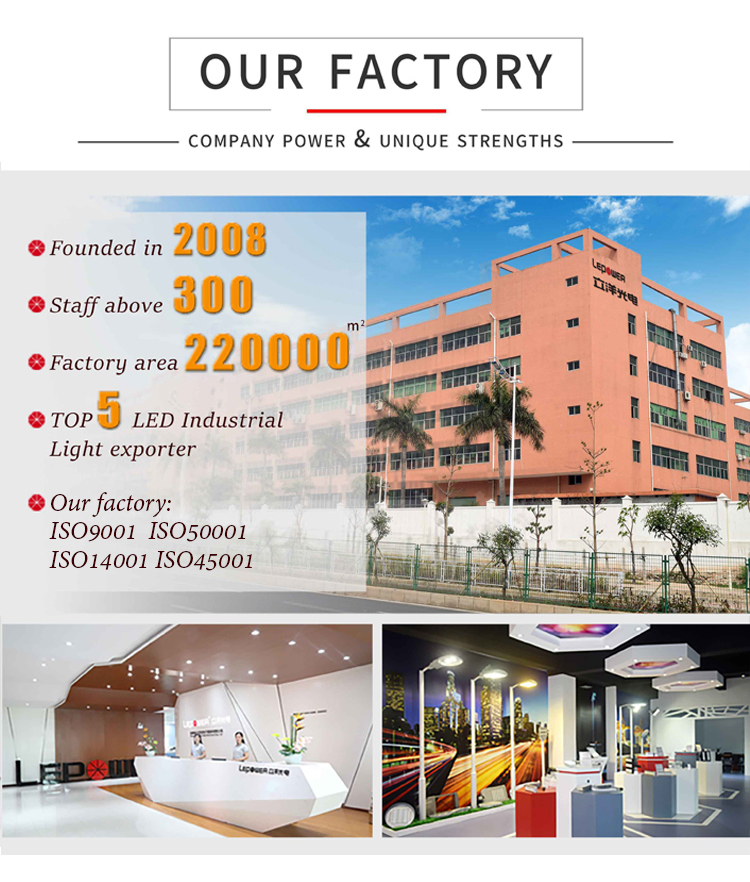

Company Introduction

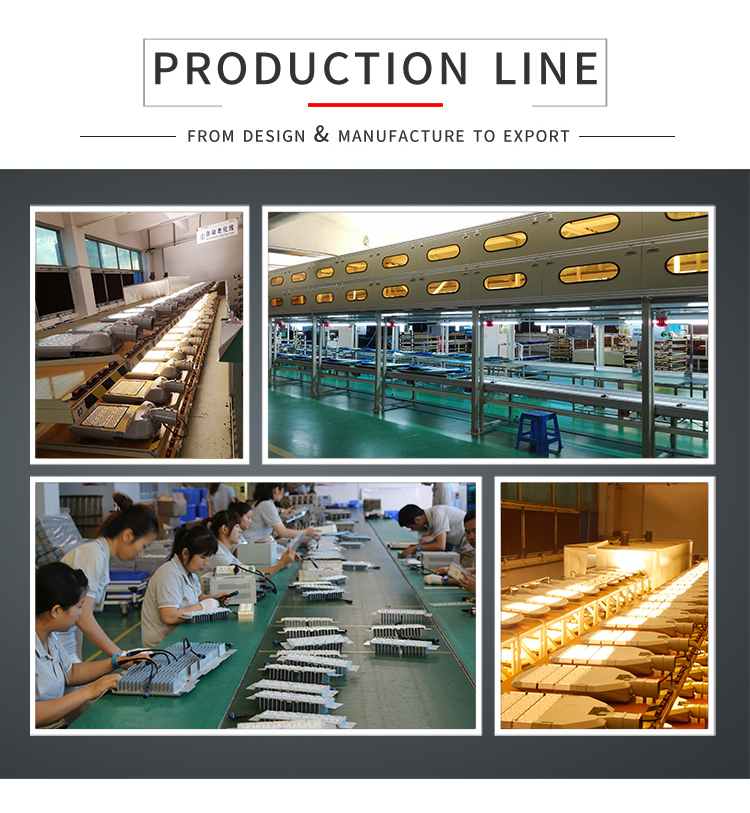

LEPOWER, founded in 2008, is a manufacturer & wholesale company. LEPOWER has been specialized in
DESIGN, MANUFACTURE,WHOLESALE,EXPORT for many years which focus on high power lighting solution,
LED Module,LED Street Light, LED Flood Light,LED High Bay Light.
Our products have been passed for ENEC,CB,CE,Rohs,LM79,LM80. ISO9001, ISO14001, ISO5001, ISO45001.
We also attend international lighting fair all over the world and discuss with customers face to face.
LEPOWER's sales team could provide fast contact and all support for your needs.








FAQ


Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 10-15 days for 500pcs; 20-25 days for 5000pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.

Warranty terms
1. 5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, We will provide paid maintenance within warranty period.

FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.

Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrosion.

Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 piece,easy know each other better via samples, we look on the long term and win-win cooperation.

Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you
the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
